Operation via fieldbus
ClipX
a4643-1.0 HBM: public 71
Pin assignment for BM40IE, PROFINET

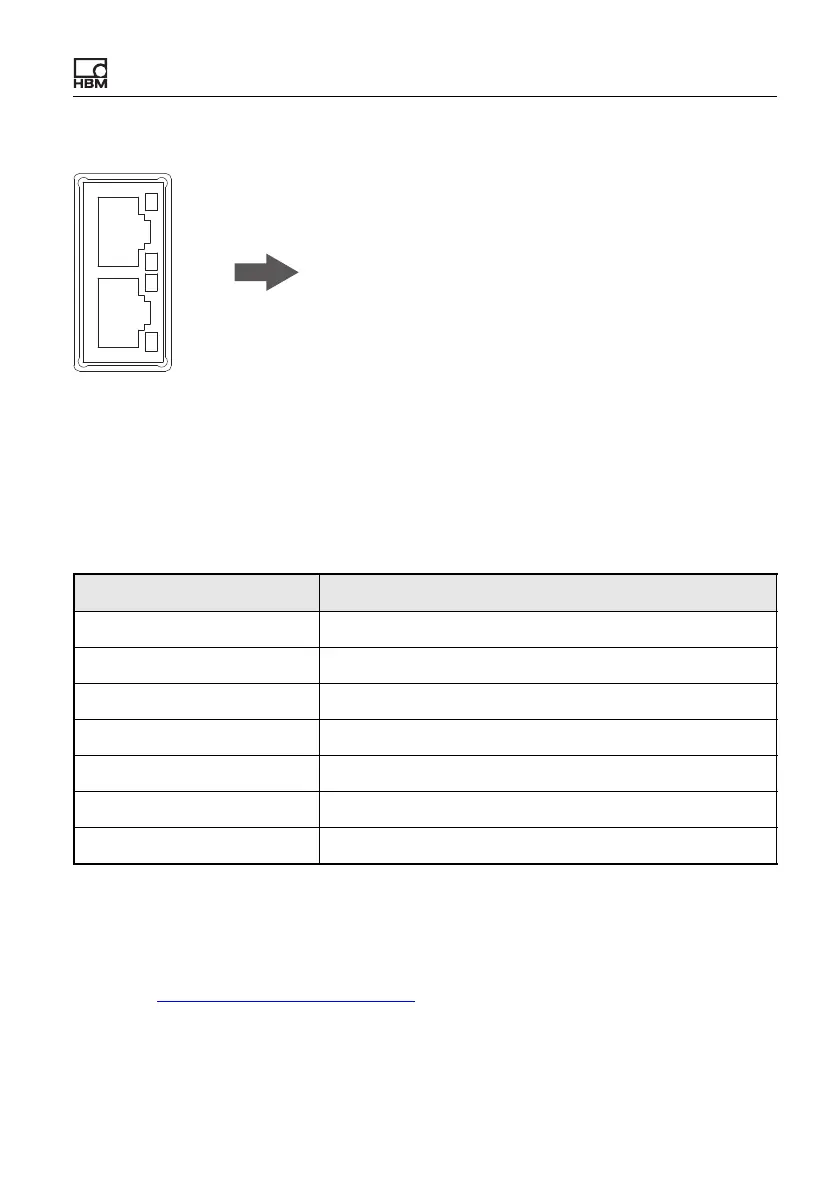

Fig. 37: X6, X7: Pin assignment for PROFINET
8.2 Data types used by the ClipX
The table below contains the abbreviations used in the command descriptions
for the data types.
8.3 Data transfer from the controller to the ClipX
See also Data types used by the ClipX.
The following table sets out the data and the speed at which the data are down-
loaded by the ClipX in the event of a change. The speed (cycle in ms) is not syn-
Abbreviation Description
REAL, FLOAT 32 bits, floating-comma number
SINT 8 bits, integer signed
INT 16 bits, integer signed
DINT 32 bits, integer signed
USINT 8 bits, integer unsigned
UINT 16 bits, integer unsigned
UDINT 32 bits, integer unsigned
X7
X6
Port 1
Port 2
PROFINET master or
PROFINET slaves or
switch
