Operation via fieldbus
70
a4643-1.0 HBM: public ClipX

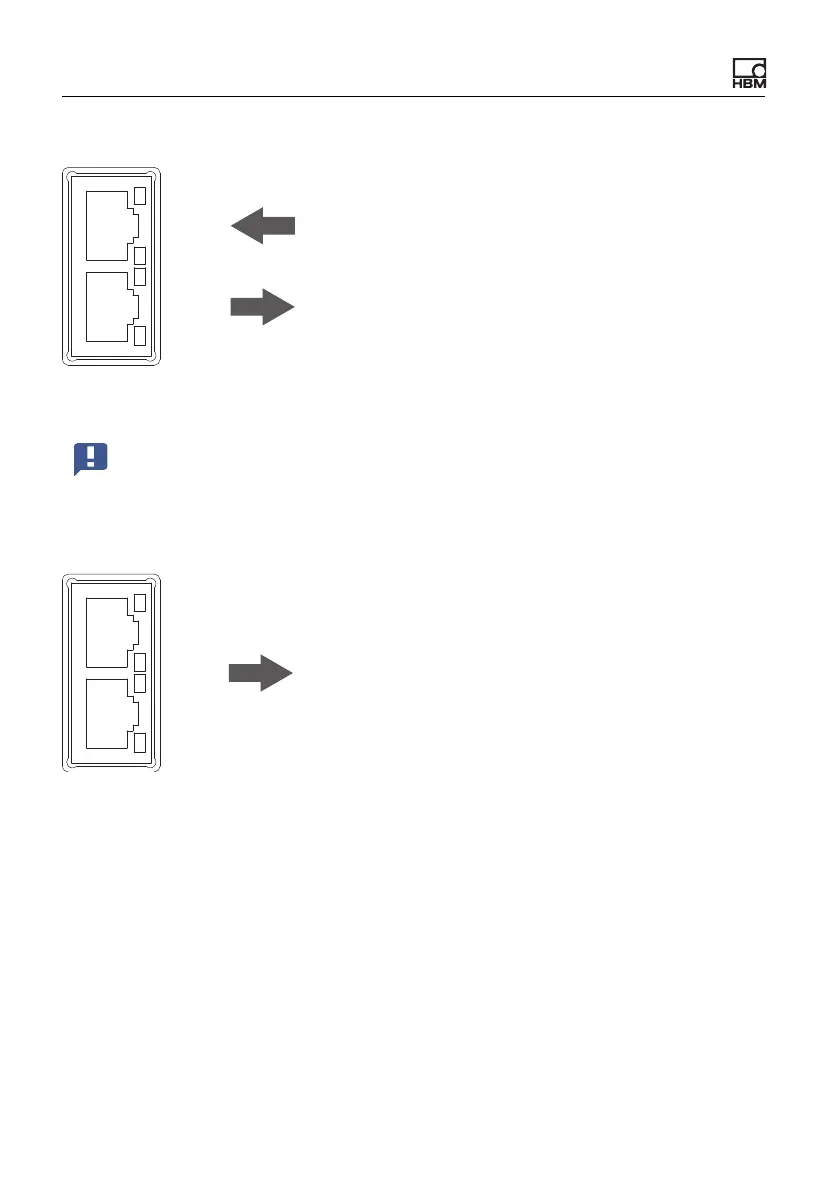

Pin assignment for BM40IE, EtherCAT
Fig. 35: X6, X7: Pin assignment for EtherCAT
Pin assignment for BM40IE, EtherNet/IP™
Fig. 36: X6, X7: Pin assignment for EtherNet/IP™
X7
X6
IN
OUT
EtherCAT master or
EtherCAT slaves
Important: The connections are not equivalent. Pay attention to the
specified direction IN/OUT.
X7
X6
Port 1
Port 2
EtherNet/IP™ master or
EtherNet/IP™ slaves or
switch
