3 Mount the Actuator to the valve by sliding the valve stem groove into the Actuator U-channel as shown in Figure 8. If necessary,
use the Actuator manual tab to adjust the position of the U-channel until it is aligned with the valve stem groove.
04 INSTALLATION INSTRUCTIONS
NOTE
The U-bolt must also be aligned with the valve groove, as shown in Figure 8. If necessary use the actuator manual tab to
adjust the position of the actuator frame and mounting holes to align the U-bolt with the valve body groove.

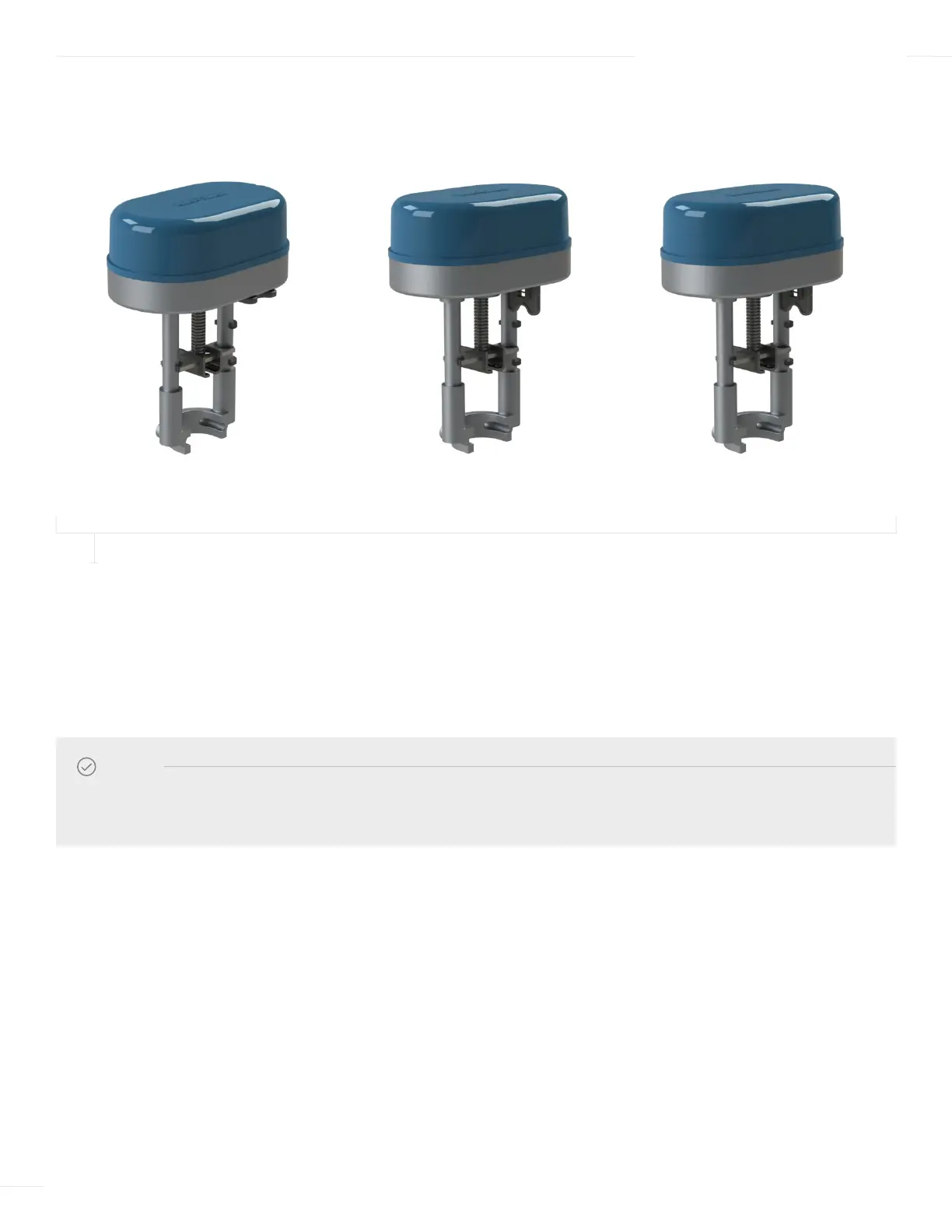

FIGURE 7
MANUALLY CLOSING THE ACTUATOR
1
Switch from Auto
to Manual
Lower Tab Lift TabTurn tab to manually raise
or lower the actuator
2
Manual Operation
3
Switch from Manual
to Auto
