Note: For information on preconfigured zoning configurations, see: Predefined Zoning
Configurations on page 162.
d. IOM SAS Address: SAS Address associated with IOM A
Note: A comma should be placed after each bit of data in the IOM SAS Address that was
recorded. For example, if the IOM SAS Address output was 5000CCAB0300003C, the address
that should be added to the sg_senddiag command should be 50,00,CC,AB,03,00,00,3C.
b) Use the example of the sg_senddiag command shown in the image above to complete the specific
sg_senddiag command for IOM B. Replace letters a through d with the information recorded in previous
steps.

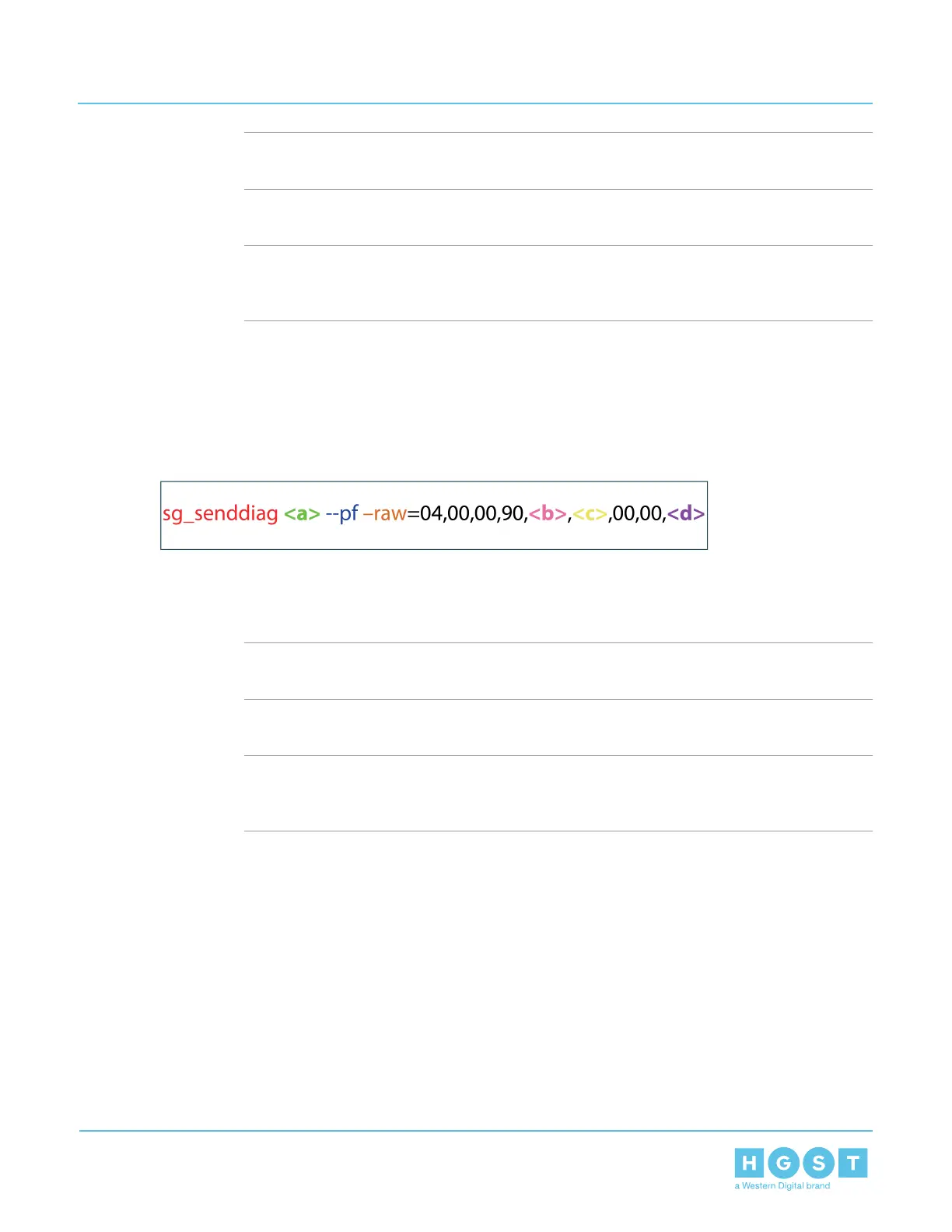

Figure 191: sg_senddiag Command
a. SCSI device (<dev>): device associated with IOM B
b. Disable Zoning: 60
c. Zoning Configuration: configuration 00
Note: For information on preconfigured zoning configurations, see: Predefined Zoning
Configurations on page 162.
d. IOM SAS Address: SAS Address associated with IOM B
Note: A comma should be placed after each bit of data in the IOM SAS Address that was
recorded. For example, if the IOM SAS Address output was 5000CCAB0300007C, the address
that should be added to the sg_senddiag command should be 50,00,CC,AB,03,00,00,7C.
c) The following are examples of completed sg_senddiag commands for IOM A and B.
• IOM A: sg_senddiag 3 --pf --raw=04,00,00,90,60,00,00,00,50,00,CC,AB,03,00,00,3C
• IOM B: sg_senddiag 106 --pf --raw=04,00,00,90,60,00,00,00,50,00,CC,AB,03,00,00,7C
5. Disable zoning on IOM A using the sg_senddiag command.
a) Issue the command for IOM A that was built in the previous step.
b) Disabling a predefined zoning configuration will reset the SAS connector ports which may cause the
sg_senddiag command to return a status of DID_TIME_OUT or DID_SOFT_ERROR. Despite the error,
