Note: When installing SSDs for this configuration, the preinstalled HDDs will have to be moved one
entire row to the next vacant row near the front of the enclosure.

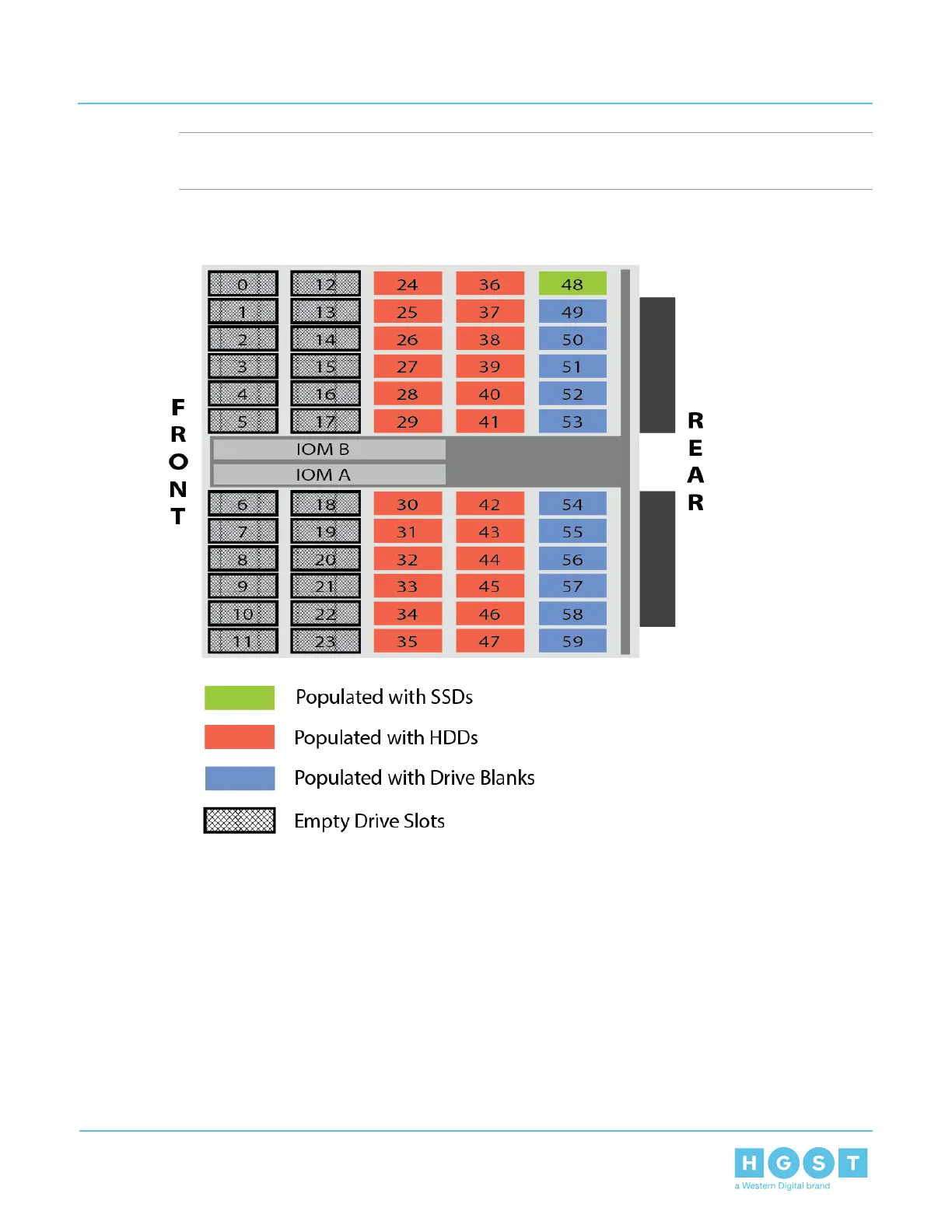

Figure 193: Minimum HDD and Minimum SSD Partial Population
Minimum HDD and Maximum SSD Partial Population:
The enclosure supports a minimum of 24 HDDs and one SSD for a partially populated enclosure. The enclosure
can support a maximum of up to 24 total SSDs in this configuration. The enclosure does not support a mix of
SAS and SATA drives. The image below details the required configuration for minimum HDD and maximum
SSD configuration.
185
5 System Management
User Guide 5.3 Partially Populated Enclosures
