a "criss-cross" pattern. See the Special Considerations for Cable Routing on page 142 for
more information.

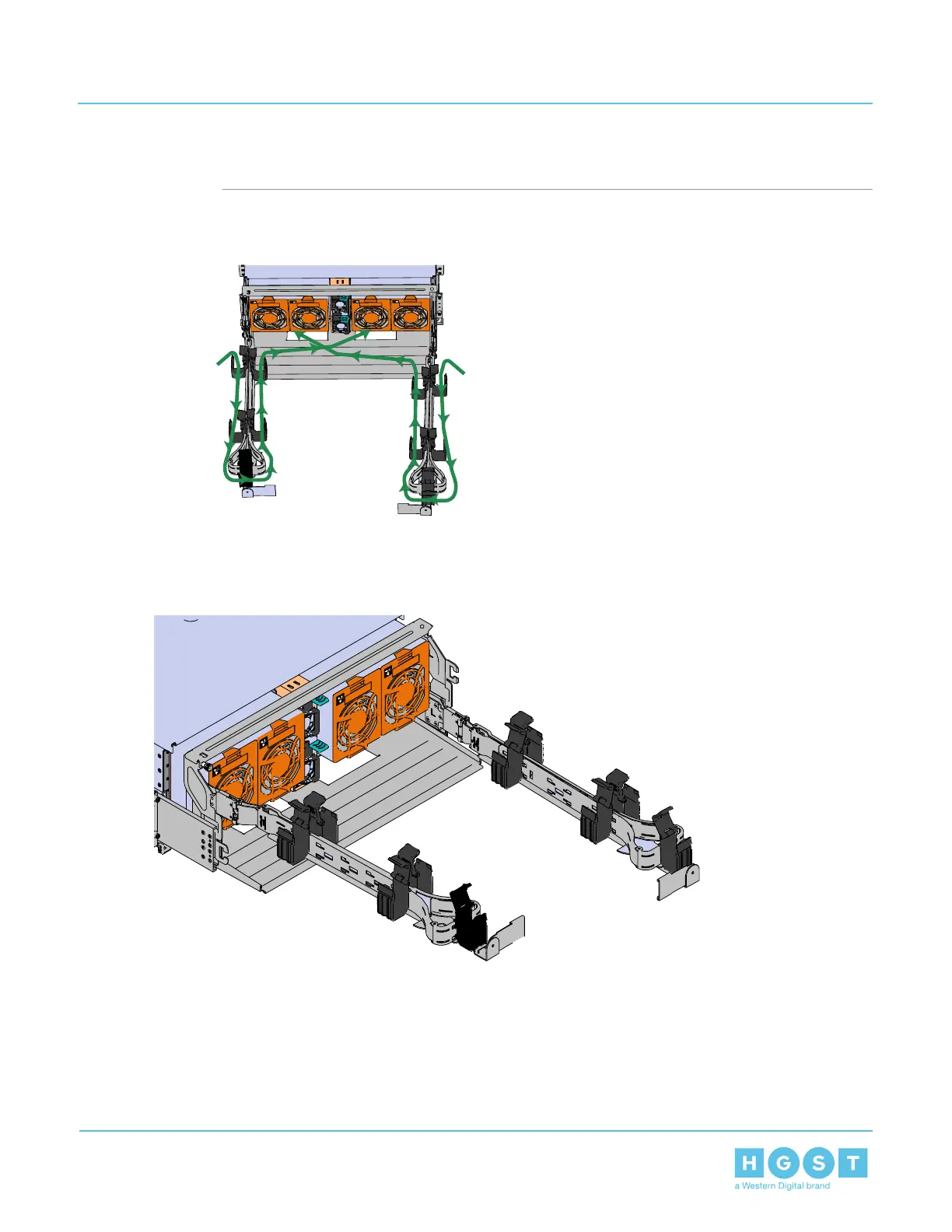

Figure 207: Connected Cable Routing
c) Open all of the baskets
Figure 208: Open Baskets
d) Connect all of the SAS cables that will be used and route them through the baskets one at a time. Make
sure to follow the labels to make sure they are connected to the proper port.
e) If the installation includes more than 10 total cables, follow the recommendations in Special
Considerations for Cable Routing on page 142. Read this section before proceeding.
