Note: Each cable must be given enough slack at the connector end to operate smoothly. For
the upper CMA allow 20" - 21" (508 – 533.4mm) between the end of the connector and the first
basket. Make sure to route all of the upper CMA cables under the lower CMA cables.

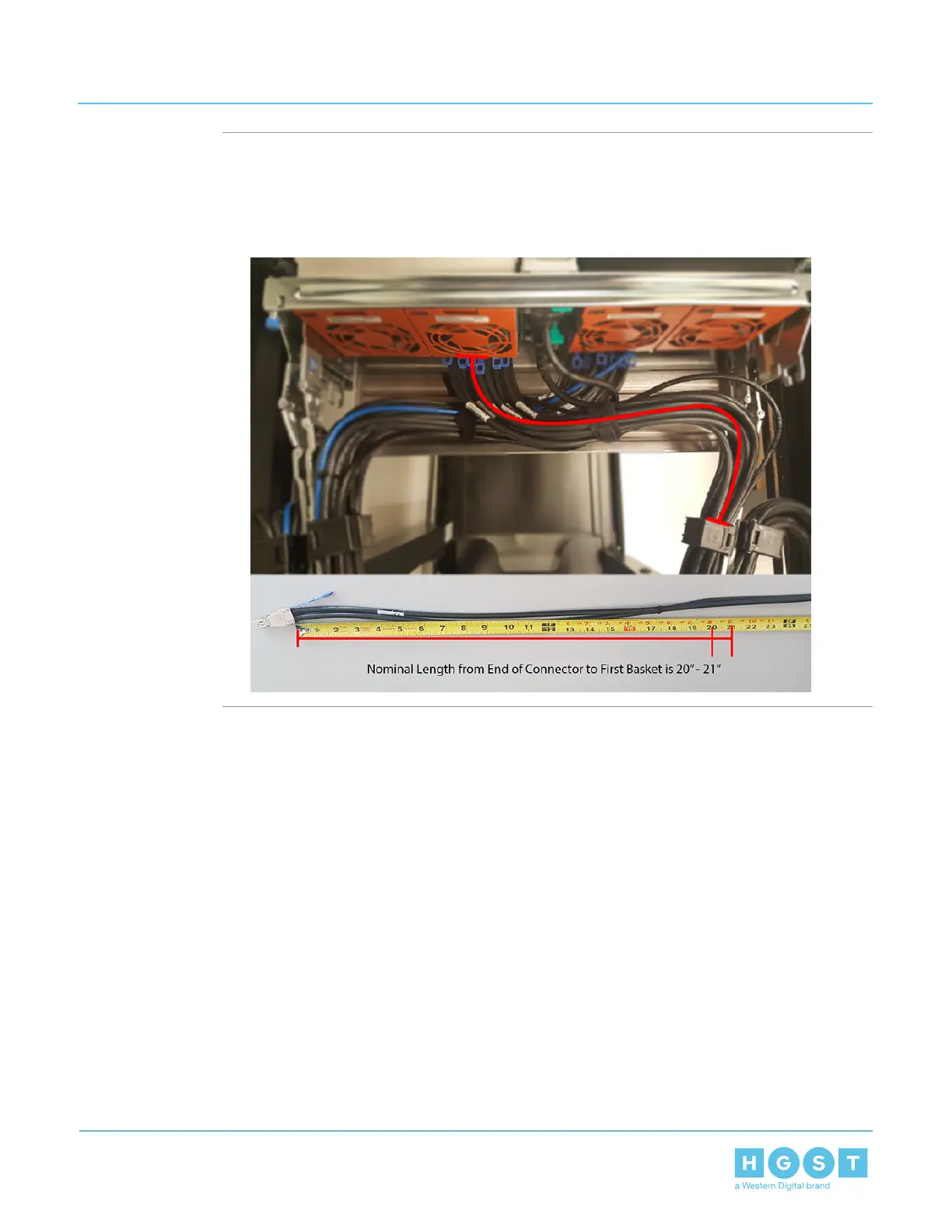

Figure 212: Nominal Cable Length at Connectors
d) Close all of the baskets.
e) Reconnect the CMA at the elbow to connector A.
4. Connect the SAS cables to the host server(s) according to the One Host Cable Configurations on page
191 and Two Host Cable Configurations on page 195.
