d) Both arms should be extended away from the enclosure as shown in the following example.

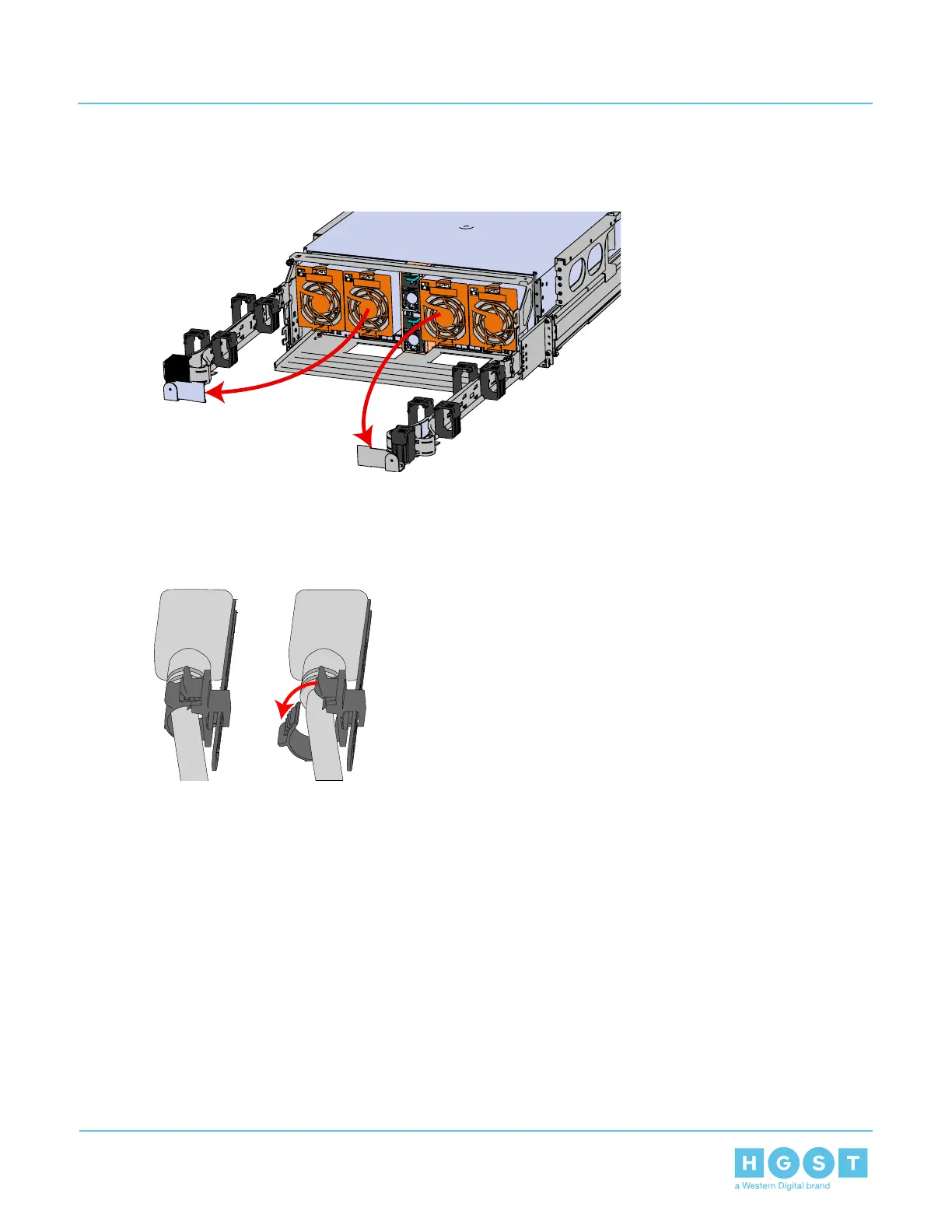

Figure 42: CMAs in service position (Cables not shown)
2. Locate the faulty PSU by finding the amber LED lit at the rear of the enclosure.
3. Detach the retention clip from the PSU cable.
Figure 43: Cable Retention Mechanism
4. Remove the power cable from the faulty PSU.
5. Uninstall the PSU.
61
4 Part Replacement
User Guide 4.3 PSU Replacement
