a) Grasp the release lever and the metal handle in a downward pinching motion to release the latching
mechanism.

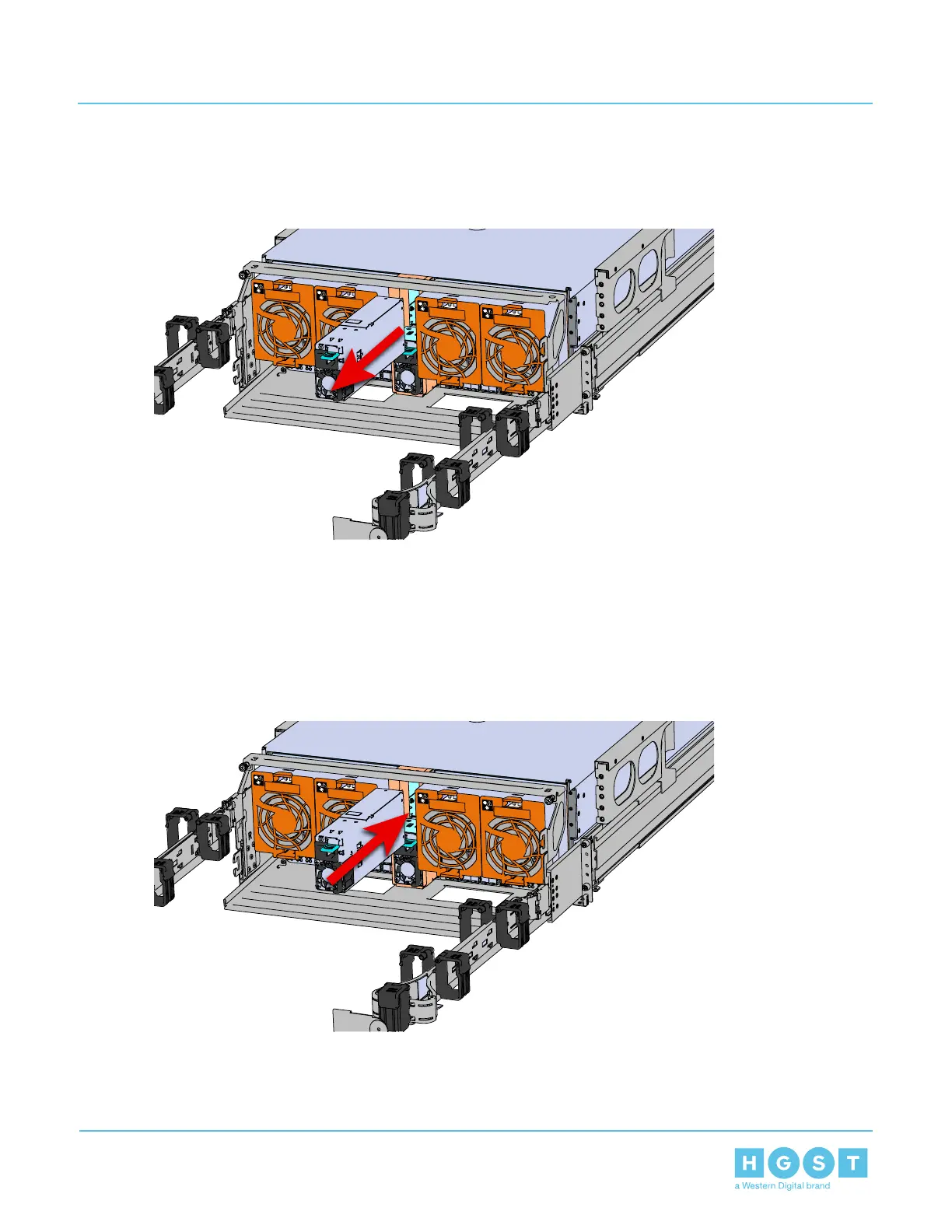

Figure 44: Uninstalling PSU
b) Pull the PSU straight out with even pressure.
6. Remove the new PSU from its packaging.
7. Install the PSU.
a) Align the PSU in the orientation shown in the following image.
b) Slide the PSU into the slot until it seats fully into the chassis.
Figure 45: Installing the PSU
c) Plug the power cable into the receptacle at the back of the PSU.
62
4 Part Replacement
User Guide 4.3 PSU Replacement
