DTS-60A OPERATORS MANUAL

test download

prg 0 new IEC-156/95 2.5 0.05 mm type_I_II 00:05:00 00:05:00 06

prg 0 stage 00 002.0 kV/s breakdown 00:10:00 00:02:00 00:02:00 next store

prg 0 stage 01 002.0 kV/s breakdown 00:10:00 00:02:00 00:02:00 next store

prg 0 stage 02 002.0 kV/s breakdown 00:10:00 00:02:00 00:02:00 next store

prg 0 stage 03 002.0 kV/s breakdown 00:10:00 00:02:00 00:02:00 next store

prg 0 stage 04 002.0 kV/s breakdown 00:10:00 00:02:00 00:02:00 next store

prg 0 stage 05 002.0 kV/s breakdown 00:10:00 00:02:00 00:02:00 end store

prg 0 end

In Appendix A the reader can find information about various standards

and the respective script test files.

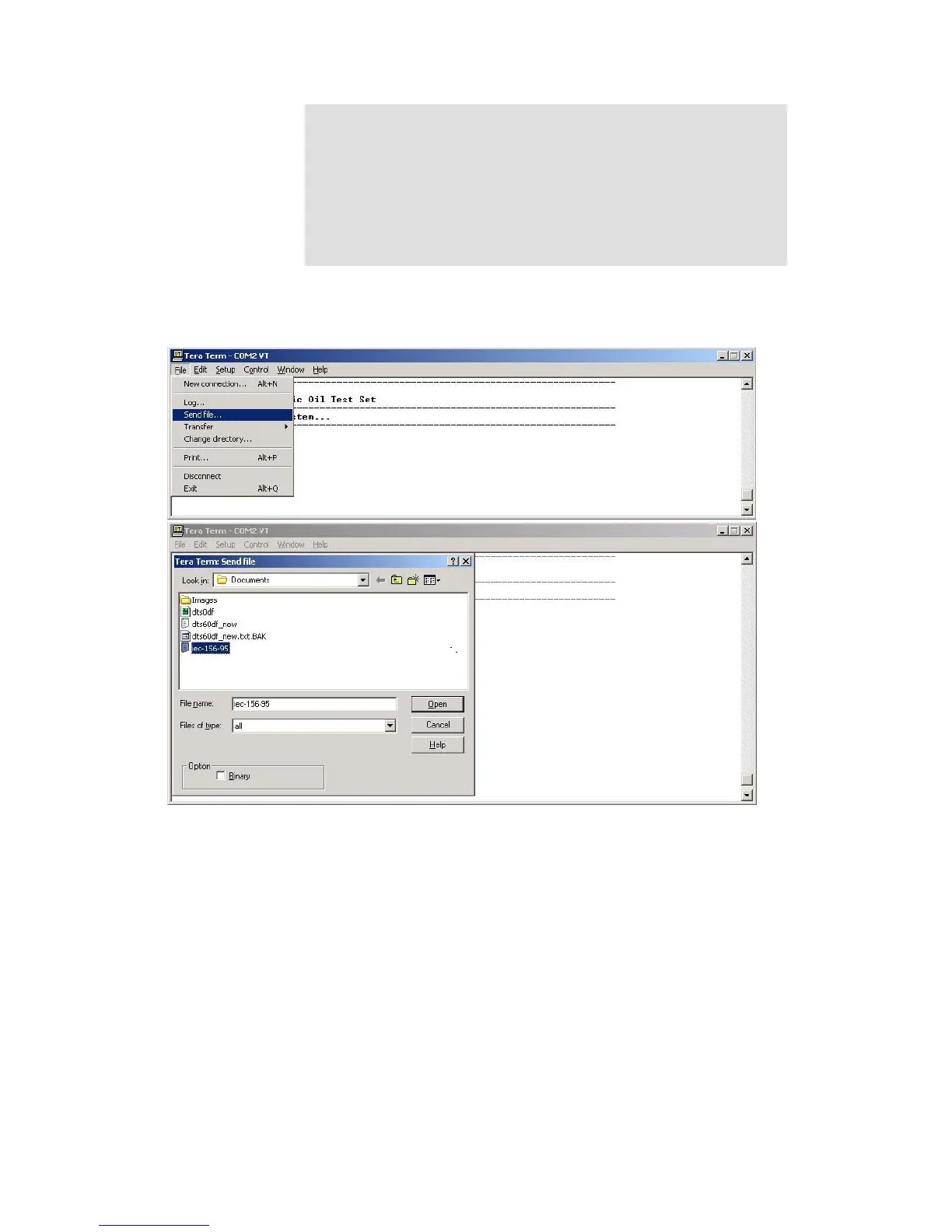

Figure 8-14 – Set-up the Terminal Software (TeraTerm)

After the termination of the transmission the user must

execute a program read command in order to manual verify the

downloaded program.

High Voltage DTS-60A - Page 103
