DTS-60A OPERATORS MANUAL
35

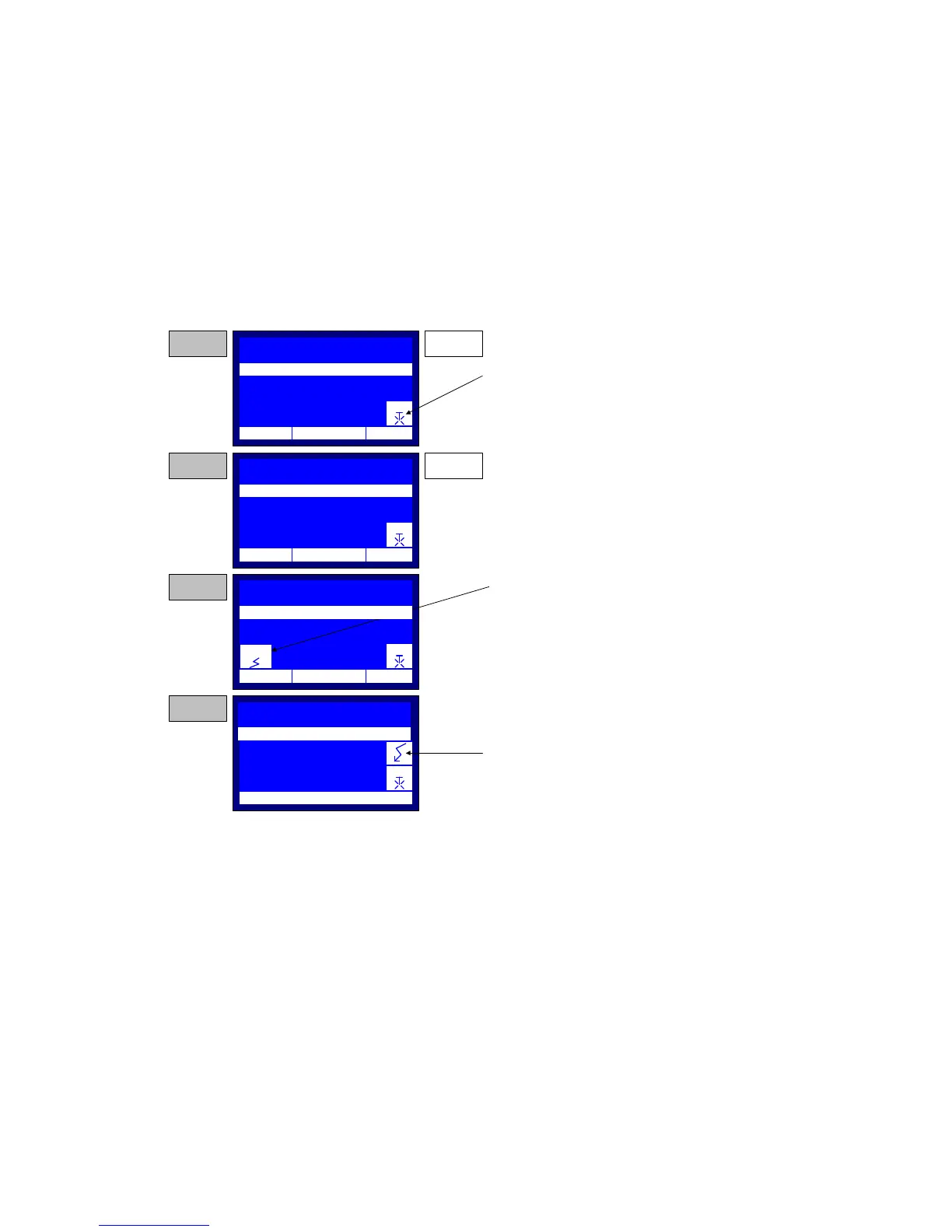

Figure 3-8b – Simple Test Example
48.2
PRESS ANY KEY...
kV
STIR
0.0
kV
STIR
STEP 5 BACK
By pressing the BACK key the STIRRER is
enabled or disabled. While enabled the system
displays the STIRRER ICON.
0.0
kV
STIR
STEP 6 ENTER Press the ENTER key to start the test.
1.0
kV
STIR
STEP 7
The High Voltage On indicator is depickted.
The system increases the output voltage. The
voltage measurement is updated continuously.
The test duration is also updated every 1 sec.
STEP 8
The High Voltage On indicator is vanished.
Breakdown occured!
The system stop updating the voltage and the
duration and
displays the BREAKDOWN ICON.
STAGE
1
STAGE
1
STAGE
1
HN on
12:10 01/08/05 65 °F
12:10 01/08/05 65 °F
STAGE
1
12:10 01/08/05 65 °F
TEST:SIMPLE TEST
TIMER:
00:00:00
VOLTAGE:
0.5 kV/s
TEST:SIMPLE TEST
TIMER:
00:00:00
VOLTAGE:
0.5 kV/s
TEST:SIMPLE TEST
TIMER:
00:00:02
VOLTAGE:
0.5 kV/s
TEST:SIMPLE TEST
TIMER:
00:01:36
VOLTAGE:
0.5 kV/s
