DTS-60A OPERATORS MANUAL
65
b. Complicated Example

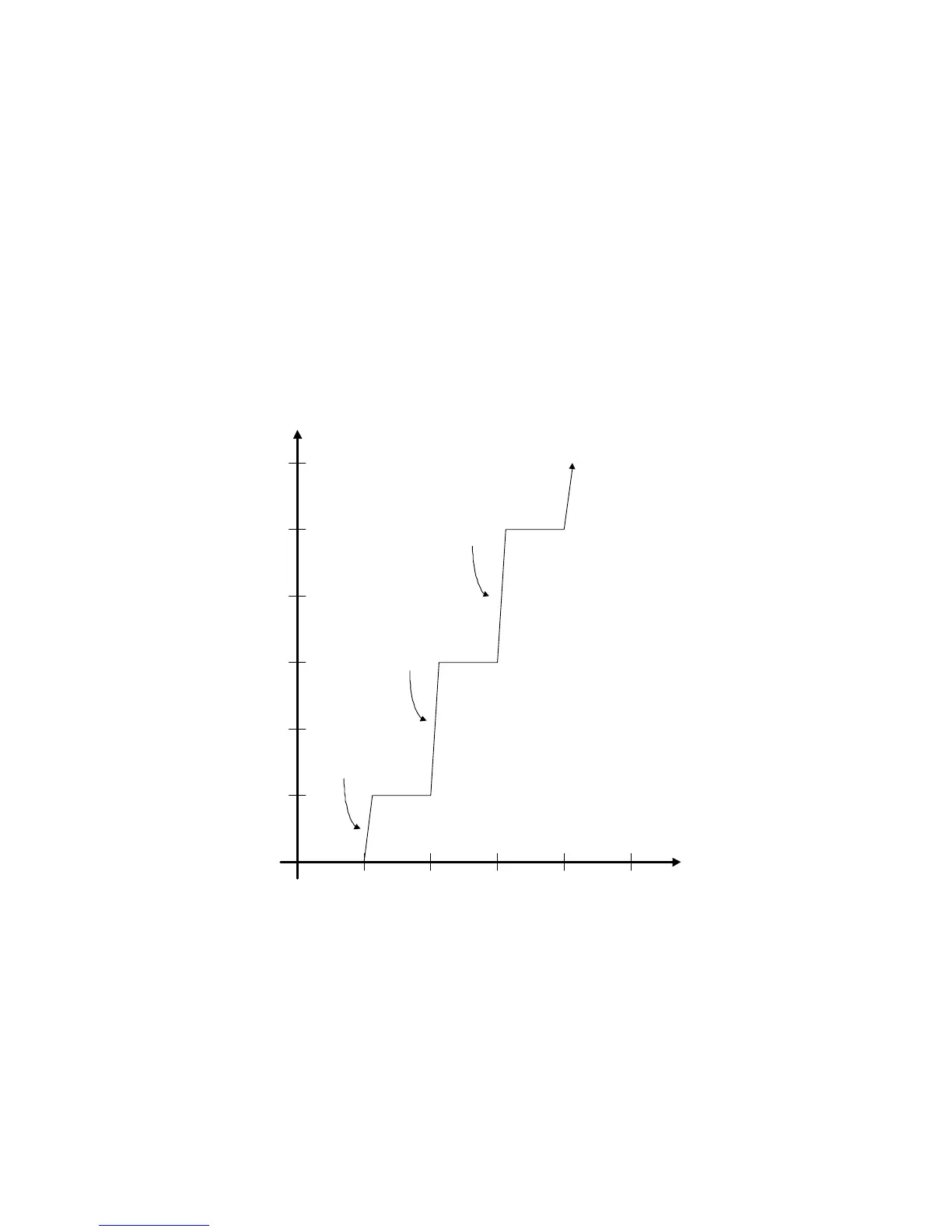

Consider a more complicated example, depicted in Figure 22. The 1
st
10min 0 kV duration is the Startup Wait time. After this the program consists
of 7 stages:
b. 1
st
stage : 1kV/s for 10 sec
c. 2
nd
stage : 10kV for 10min
d. 3
rd
stage : 2kV/s for 10 sec
e. 4
th
stage : 30kV for 10 min
f. 5
th
stage : 3kV/s for 10 sec
g. 6
th
stage : 60kV/s for 10 min
h. 7
th
stage : 4kV/s until breakdown
In case of breakdown (in anyone stage) the program is desired to
terminate and no after breakdown wait and stirrer timer are needed. The
script file for such a program is given in the next page.
Voltage (kV)
Time
10 min 20 min
30 min
40 min
50 min
10 kV
20 kV
30 kV
40 kV
50 kV
60 kV
10 sec
10 sec
10 sec
to Breakdown
