Digital Video Recorder User Manual
166

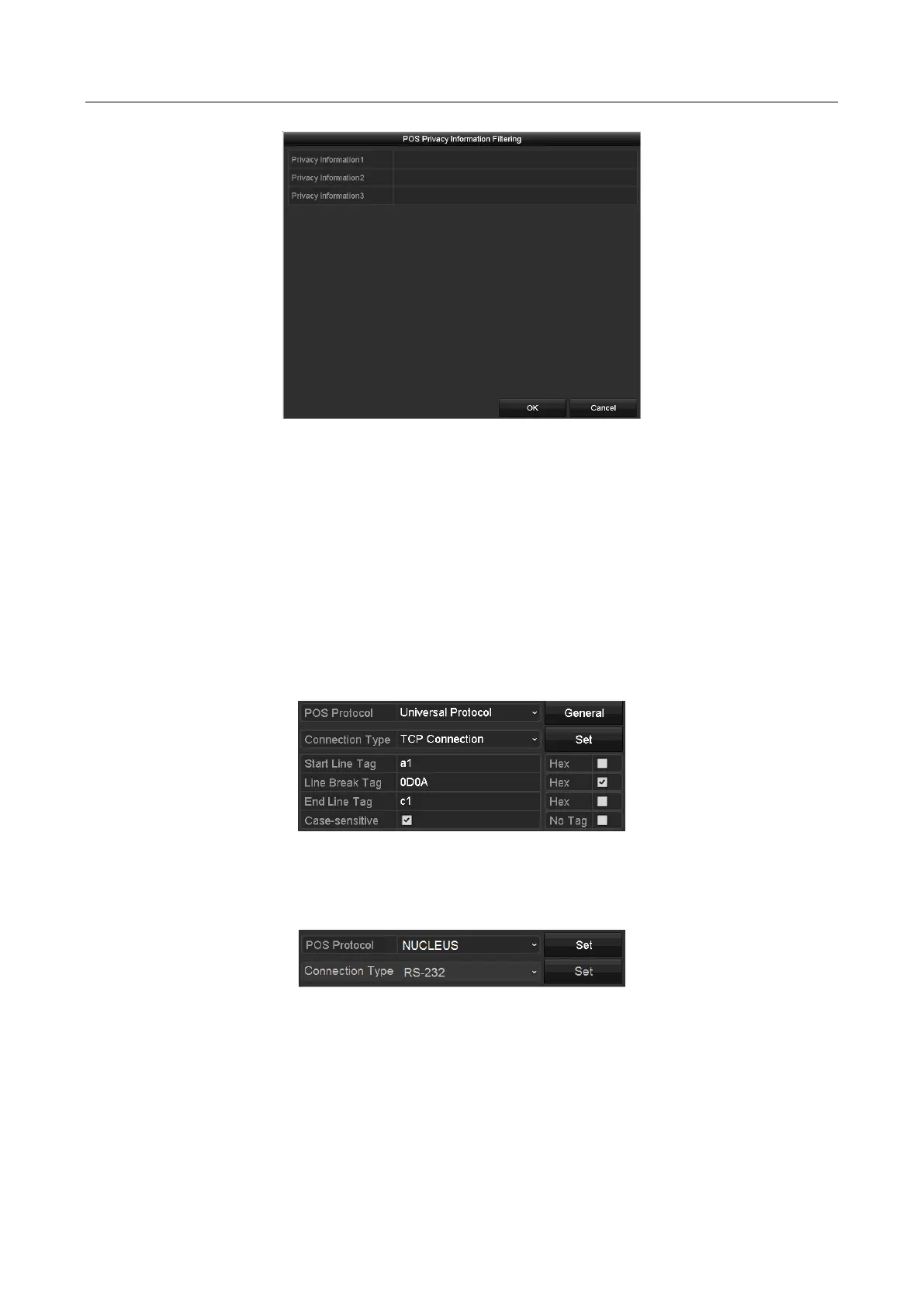

Figure 9-2 POS Privacy Information Filtering
2) Edit the Privacy Information in the text filed to hide the input information overlay. Up to 3
pieces of privacy information can be edited and no more than 32 characters can be input
for each piece of information.
3) Click OK to save the settings.
Step 5 Select the POS protocol to Universal Protocol, EPSON, AVE or NUCLEUS.
 Universal Protocol
Click the Advanced button to expand more settings when selecting the universal protocol. You
can set the start line tag, line break tag and end line tag for the POS overlay characters, and
the case-sensitive property of the characters.
Figure 9-3 Universal Protocol Settings
 NUCLEUS
If you select NUCLEUS protocol, reboot the device to take the new settings into effect.
Figure 9-4 NUCLEUS Protocol Settings
1) Click Set button to enter the NUCLEUS Settings interface.

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
