Digital Video Recorder User Manual
167

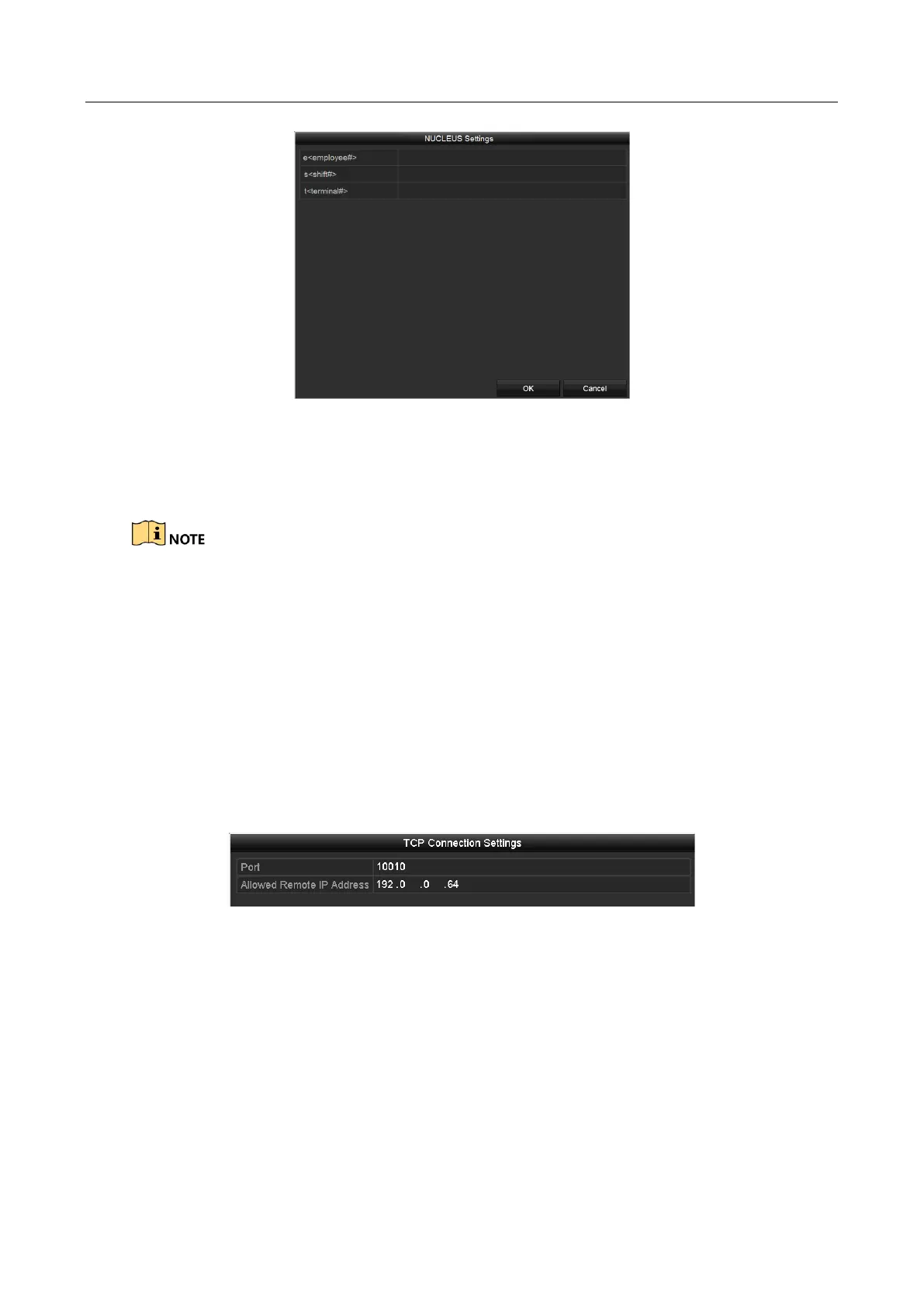

Figure 9-5 NUCLEUS Settings
2) Edit the Employee, Shift and Terminal information. No more than 32 characters can be
input.
3) Click OK to save the settings.

If you select NUCLEUS protocol, the connection type defaults to be RS-232, and all the other
POS protocol will change to be NUCLEUS.

You should set Usage to be Transparent Channel for RS-232 settings in Menu >
Configuration > RS-232 first.
Step 6 Select the Connection Type to TCP, UDP, Multicast, RS-232, USB->RS-232 or Sniff, and click
Set to configure the parameters for each connection type.
 TCP Connection
When using TCP connection, the port must be set from 0 to 65535, and the port for each
POS machine must be unique. Input the Allowed Remote IP Address for connecting the
DVR and the POS machine via TCP.
Figure 9-6 TCP Connection Settings
 UDP Connection
When using UDP connection, the port must be set from 0 to 65535, and the port for each
POS machine must be unique. Input the Allowed Remote IP Address for connecting the
DVR and the POS machine via UDP.

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
