HIKVISION DS-7104HGHI-F1 User Manual

Digital Video Recorder User Manual
168

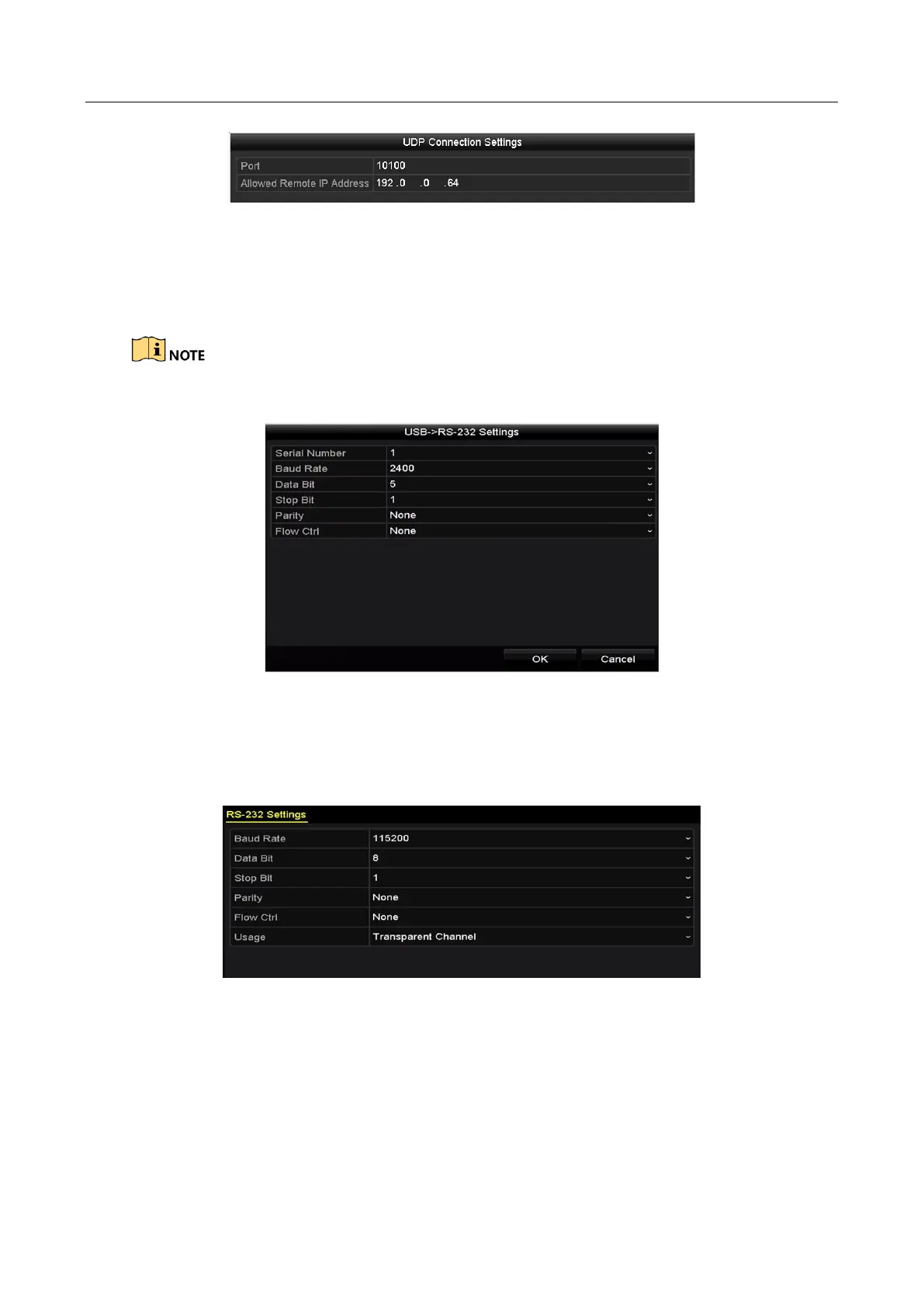

Figure 9-7 UDP Connection Settings
 USB->RS-232 Connection
Configure the port parameters of USB-to-RS-232 convertor, including the serial number of
port, baud rate, data bit, stop bit, parity and flow ctrl.
When using USB->RS-232 convertor mode, the port of USB-to-RS-232 convertor and the POS must
be corresponding to each other, e.g., POS1 must be connected to port1 of the convertor.
Figure 9-8 USB-to-RS-232 Settings
 RS-232 Connection
Connect the DVR and the POS machine via RS-232. The RS-232 settings can be configured
in Menu>Configuration>RS-232. The Usage must be set to Transparent Channel.
Figure 9-9 RS-232 Settings
 Multicast Connection
When connecting the DVR and the POS machine via Multicast protocol, set the multicast
address and port.

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
