HIKVISION DS-7104HGHI-F1 User Manual

Digital Video Recorder User Manual
33

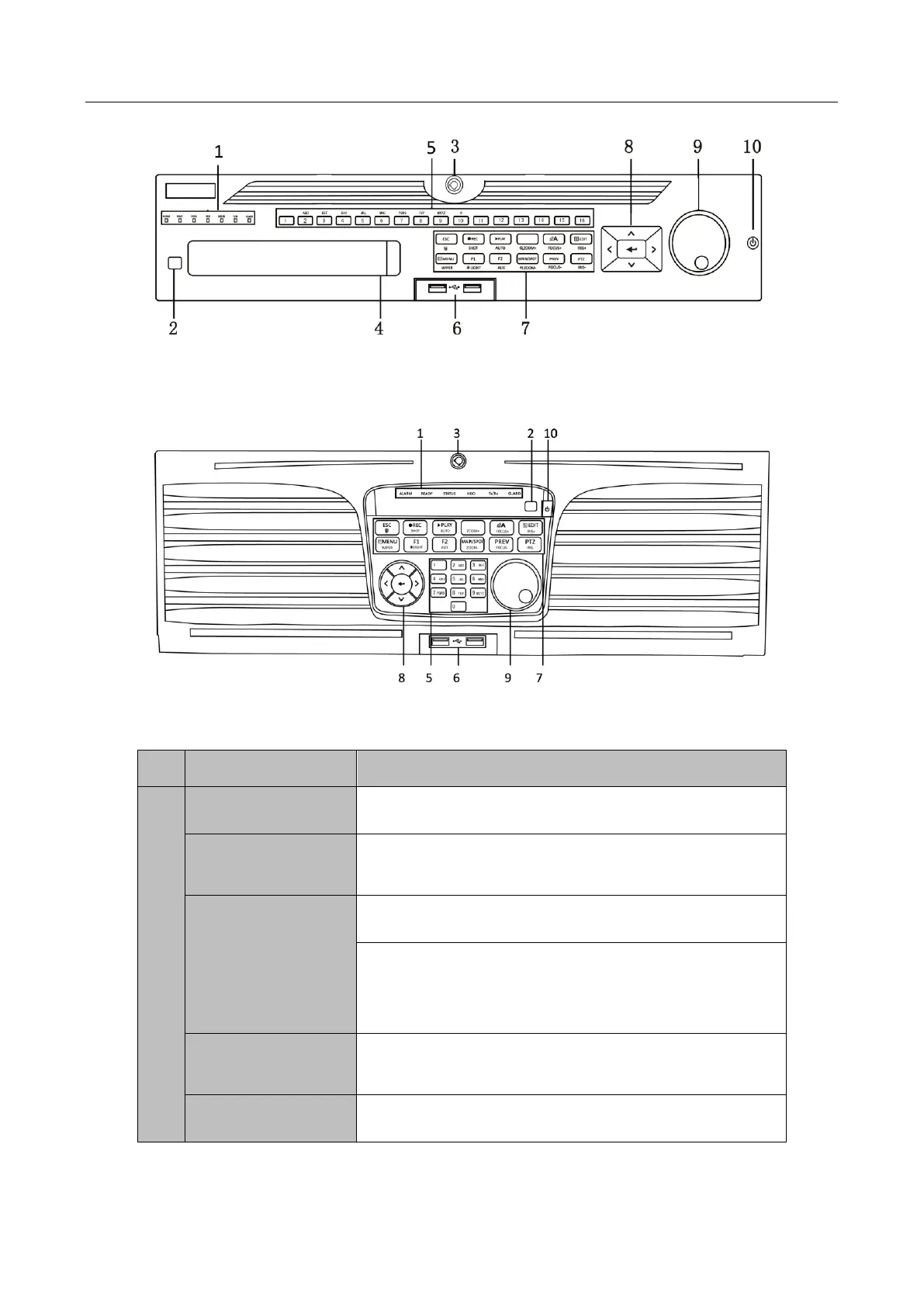

Figure 1-7 Front Panel of DS-9000HUHI-F8/N
Front Panel 8:
Figure 1-8 Front Panel of DS-9000HUHI-F16/N
Table 1-6 Description of Front Panel
No.
Name
Function Description
1
ALARM
Turns red when a sensor alarm is detected.
READY
Turns blue, indicating that the DVR is functioning
properly.
STATUS
Turns blue when device is controlled by an IR remote.
Turns red when controlled by a keyboard and purple
when IR remote and keyboard is used at the same
time.
HDD
Flickers in red when data is being read from or written
to HDD.
MODEM
Flickers in blue when network connection is

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
