37
Use of Test Leads

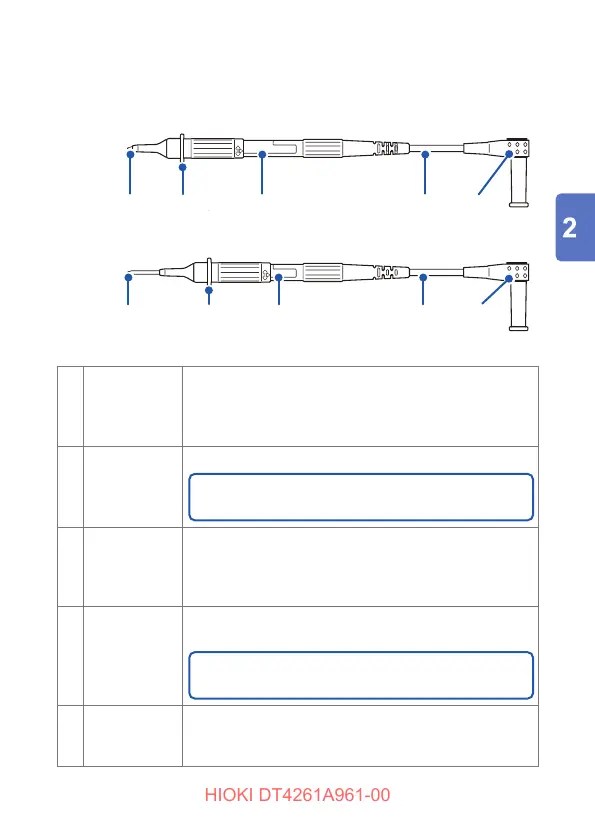

Appearance of the L9300
11 22 44 5533
For measurement in category III, IV
For measurement in category II
See: “Measurement categories” (p. 11)
11 22 44 5533
11
Metal pin Connected to the object to be measured
For measurement in category III, IV: 4 mm or less
For measurement in category II: 19 mm or less
Diameter: Approx. 2 mm
22
Protective
nger guard
Protects the user from hazardous voltage.
Do not touch the area toward the end from the
protective nger guard during measurement.
33
Measurement
category
display
The measurement category display changes when the
protective nger guard is slid.
Use the test leads with the correct measurement
category displayed.
44
Cable Double sheathed cables (Length: approx. 955 mm,
diameter: approx. 3.6 mm)
When the white portion inside the cable is
exposed, replace the test lead with a new L9300.
55
Plug Connected to the measurement terminals on this
instrument. (p. 24 ) Protective sleeves are provided.
Remove them before use.
HIOKI DT4261A961-00
