Use of Test Leads

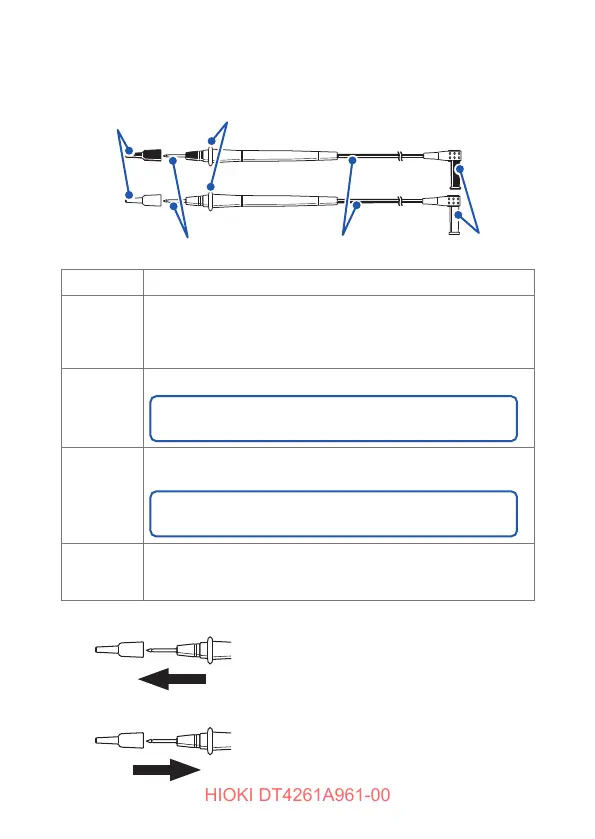

Appearance of the L9207-10
Plug
Black
Red
Protective nger guard
Sleeve
Cable
Metal pin
Sleeve Attached to the metal pin to prevent short circuit accidents.
Metal pin Connected to the object to be measured.
With sleeves attached: 4 mm or less
Without sleeves attached: 19 mm or less
Diameter: Approx. 2 mm
Protective
nger
guard
Protects the user from hazardous voltage.
Do not touch the area toward the end from the
protective nger guard during measurement.
Cable Double sheathed cables (Length: approx. 900 mm,
diameter: approx. 3.6 mm)
When the white portion inside the cable is exposed,
replace the test lead with a new L9207-10.
Plug Connected to the measurement terminals on this instrument.
(p. 24 )
Protective sleeves are provided. Remove them
before use.
Removing the sleeves
Grip the base of the sleeves and pull the
sleeves o.
Store removed sleeves for future use.
Attaching the sleeves
Insert the metal pins of the test leads into
the holes of the sleeves, and rmly push
them all the way in.
