5. Configure the parameters in the case of replacing Emulex HBA card.
See Configuration procedure for Emulex HBA card on page 7-2 section.
6. Perform Installing a PCI expansion blade into server chassis on page 5-16
procedure.

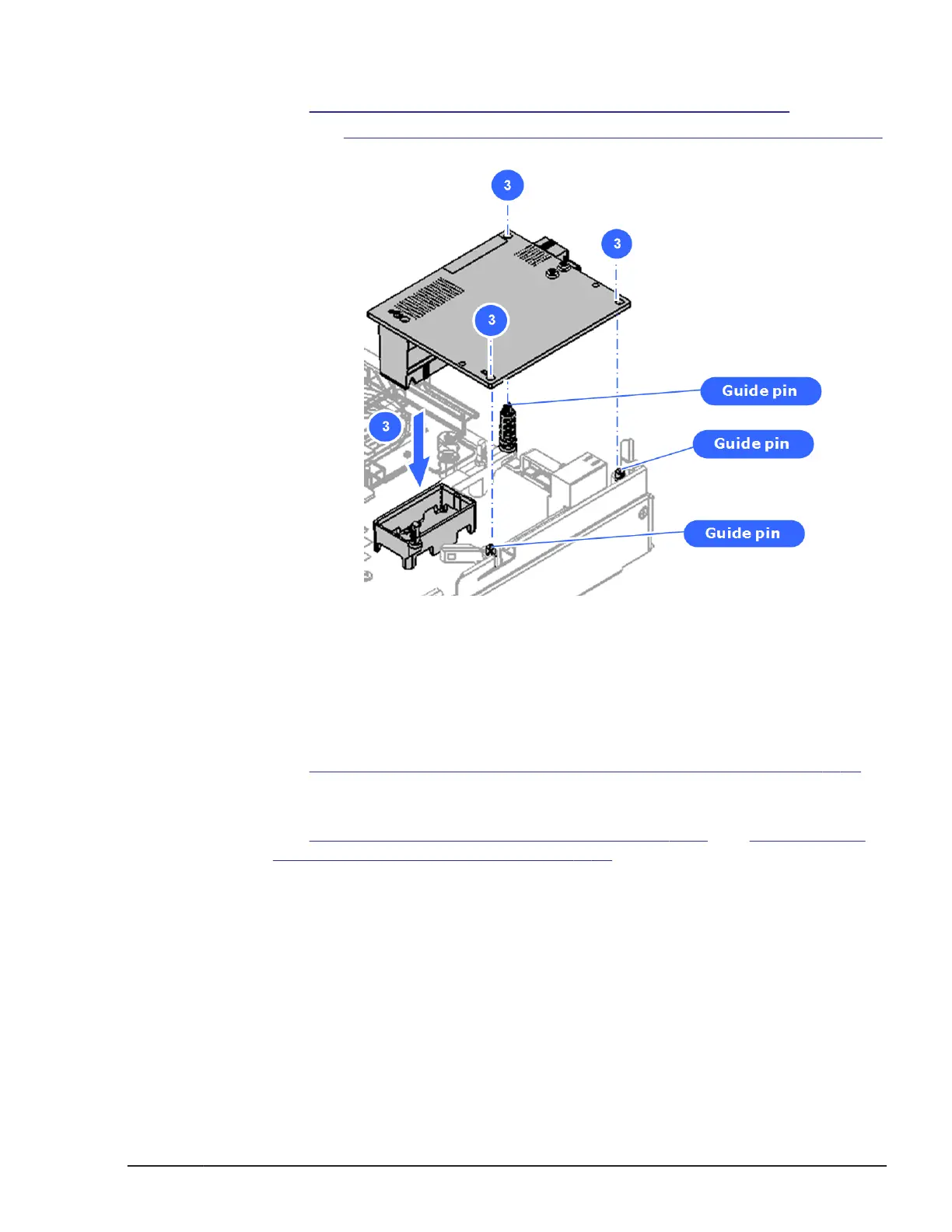

Figure 5-93 Installing the mezzanine card
Removing a connection kit F/H
1. Put on an anti-static wrist strap.
2. Removing a server blade with a PCI expansion blade.
See Removing a PCI expansion blade from server chassis on page 5-15
section.
3. Opening a top cover of server blade and storage expansion blade.
See
Opening a top cover, Server blade on page 5-38 and Opening a top
cover, PCI expansion blade on page 5-40 section.
4. Open a latch of the connector of the connection kit F/H in the PCI
expansion blade, and then pull out the connector straight upward.
5. Open two latches of the connection board in the server blade, and then
pull out the board straight upward.
Replacing parts
5-75
Hitachi Compute Blade 500 Series System Service Manual
