7. Close the top cover of PCI expansion blade. See Closing a top cover, PCI
expansion blade on page 5-41 section.
8. Install the PCI expansion blade. See Installing a PCI expansion blade into
server chassis on page 5-16 section.
Replacing a PCIe card in the PCI expansion blade
This procedure describes how to remove a PCIe card in the PCI expansion
blade.
Removing a GPU adapter
1. Put on an anti-static wrist strap.
2. Remove the target PCI expansion blade.
See
Removing a PCI expansion blade from server chassis on page 5-15
section.
3. Open the top cover of the PCI expansion blade.
See Opening a top cover, PCI expansion blade on page 5-40 section.
4. Pull out the connector of optional power cable between the connection kit
and the mezzanine slot.

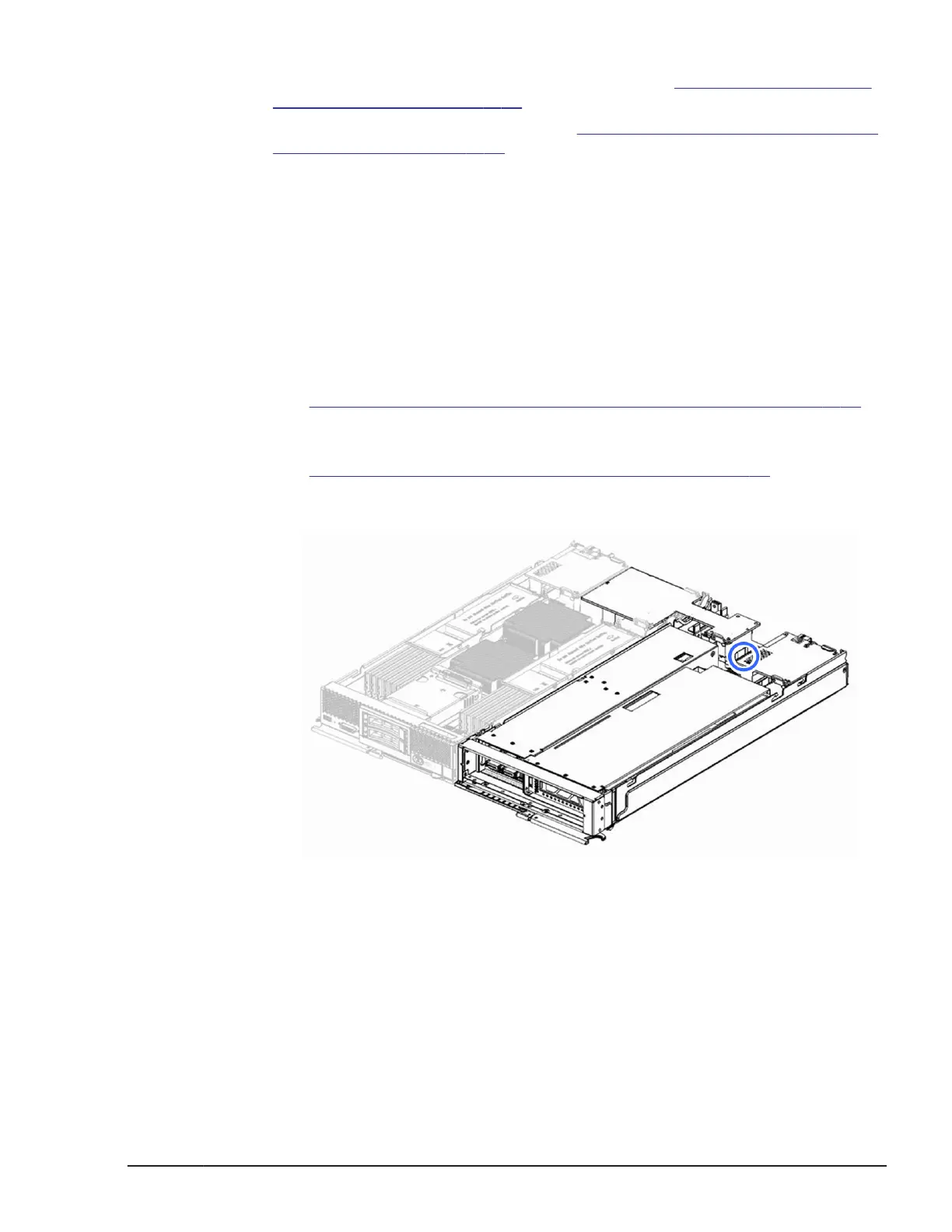

5. While holding the two portions marked with white circle, pull up the PCI
blade card adapter F/H straight upward.
Replacing parts
5-81
