Changing hardware configuration.
1. Remove server blade from chassis. See "Removing a full-wide server
blade on page 5-6" section.
2. Open the top cover. See "Opening a top cover, Server blade on page
5-38" section.
3. Remove LOM pass through connector. See "Replacing a LOM pass through
connector in half-wide server blade on page 5-53" section.
You need to remove both LOM pass through connector slot #1 and #3 at
the same time.
Keep LOM pass through connectors for future use.
4. Install mezzanine cards on server blade if you need. See "
Installing a
mezzanine card on page 5-52" section.
Supported combination of mezzanine cards is same as CB 540A A1/B1.
5. Close the top cover.
6. Insert server blade to the chassis. See "Installing a full-wide server blade
on page 5-7" section.
How to enable LOM.

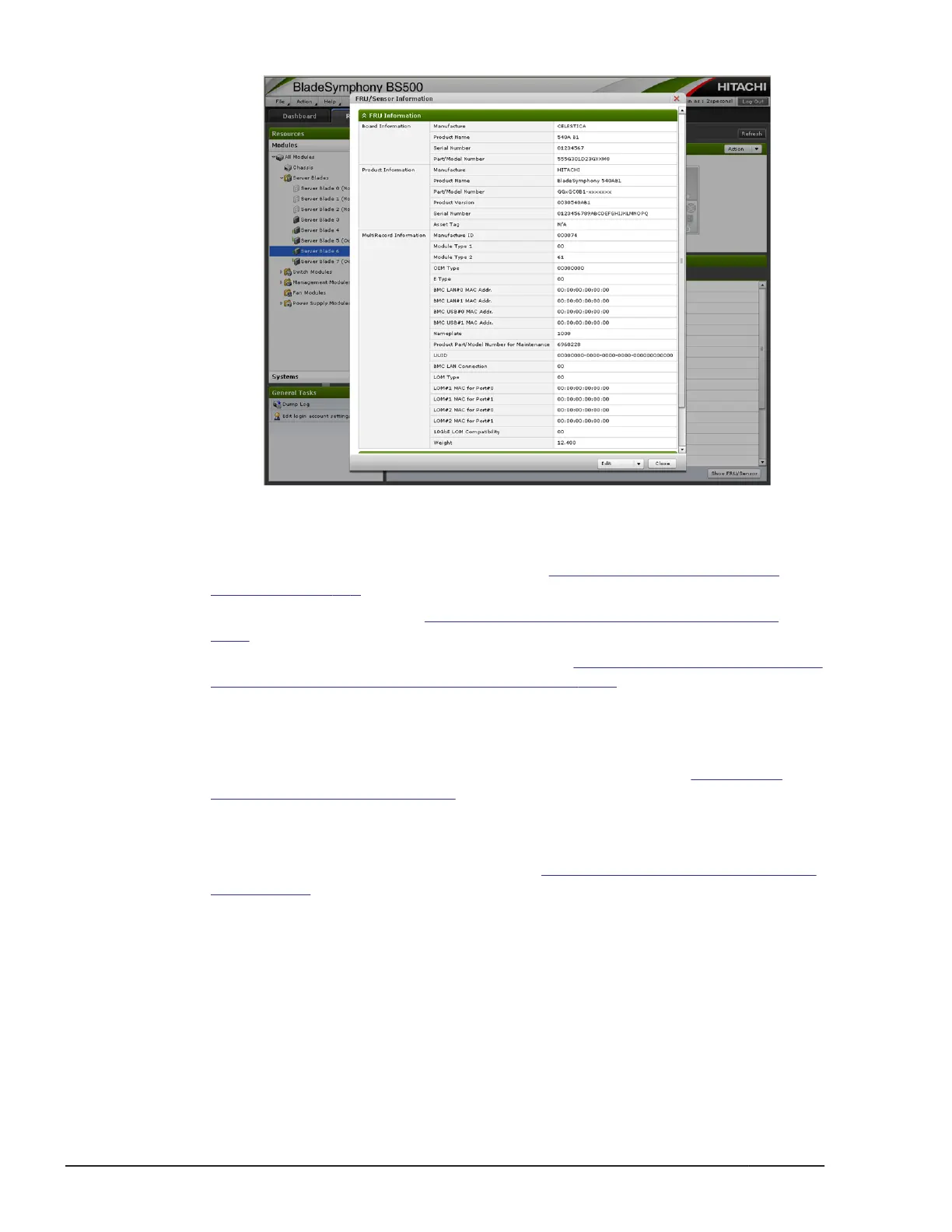

Updating FRU information.
1. [For CB 520H B1/B2/B3/B4, CB 540A B1, and Non-SMP CB 520X
B1/B2/B3]
10-8
Change LOM configuration
Hitachi Compute Blade 500 Series System Service Manual
