A SAS-kit 1 is composed of:
1. HDD backplane board
Removing a SAS-kit 1
1. Put on an anti-static wrist strap.
2. Remove the target server blade.
See Removing a half-wide server blade on page 5-4 section.
3. Open the top cover of the server blade. See Opening a top cover, Server
blade on page 5-38 section.
4. Slide the disk drives approximately 4 cm to disconnect with the HDD
backplane board.
5. Lift the HDD backplane board and remove it from the server blade
assembly.

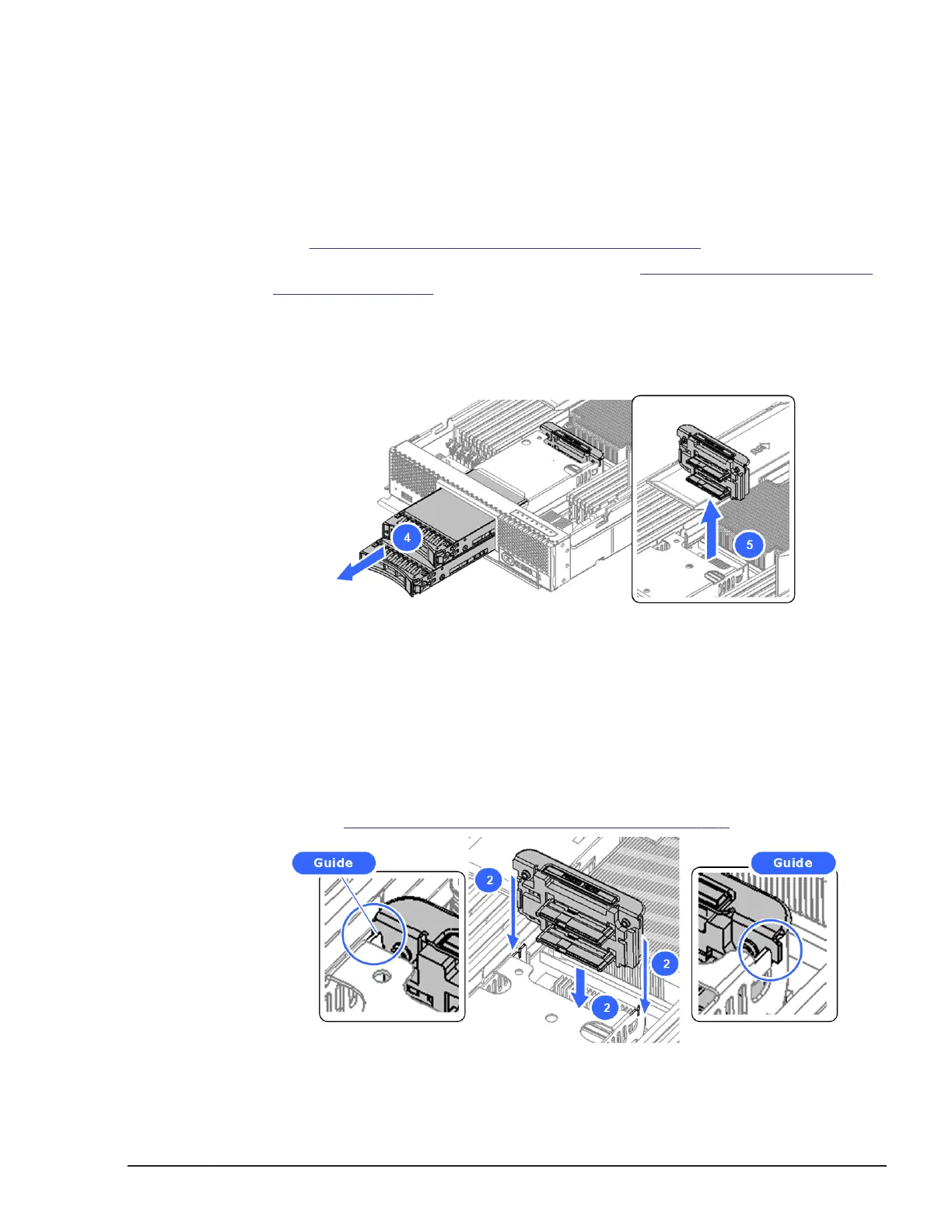

Figure 5-112 Removing the HDD backplane board
Installing a SAS-kit 1
1. Put on an anti-static wrist strap.
2. Install the spare HDD backplane board while inserting both side panel
edges to the guides.
3. Reverse the removal procedure.
4. Perform Installing a half-wide server blade on page 5-5 procedure.
Figure 5-113 Installing the HDD backplane board
Replacing parts
5-91
