INST(IN)09-04-90
(1) Connect the cables to the OUT ports according to Figure 5-1 (LOC05-10) or Figure 5-2
(LOC05-11). Eight cables need to be connected for VSP 5100 and 5100H, while 16 cables need to
be connected for VSP 5500 and 5500H.
Example of the cable
: Connect the cable to which the red label is attached to the DKB-01H 0
port (red label ).
(2) Connect the cables to the IN ports on DBs according to Figure 5-3 (LOC05-20). Eight cables need
to be connected for VSP 5100 and 5100H, while 16 cables need to be connected for VSP 5500 and
5500H.
Example of the cable
: Connect the cable to which the red and white label is attached to the
ENC000-1 IN0 port (red and white label ).
If there is another SBX/UBX/FBX in the conguration, perform Step (3) and later.
NOTE: The number of NBX that can be installed is one.

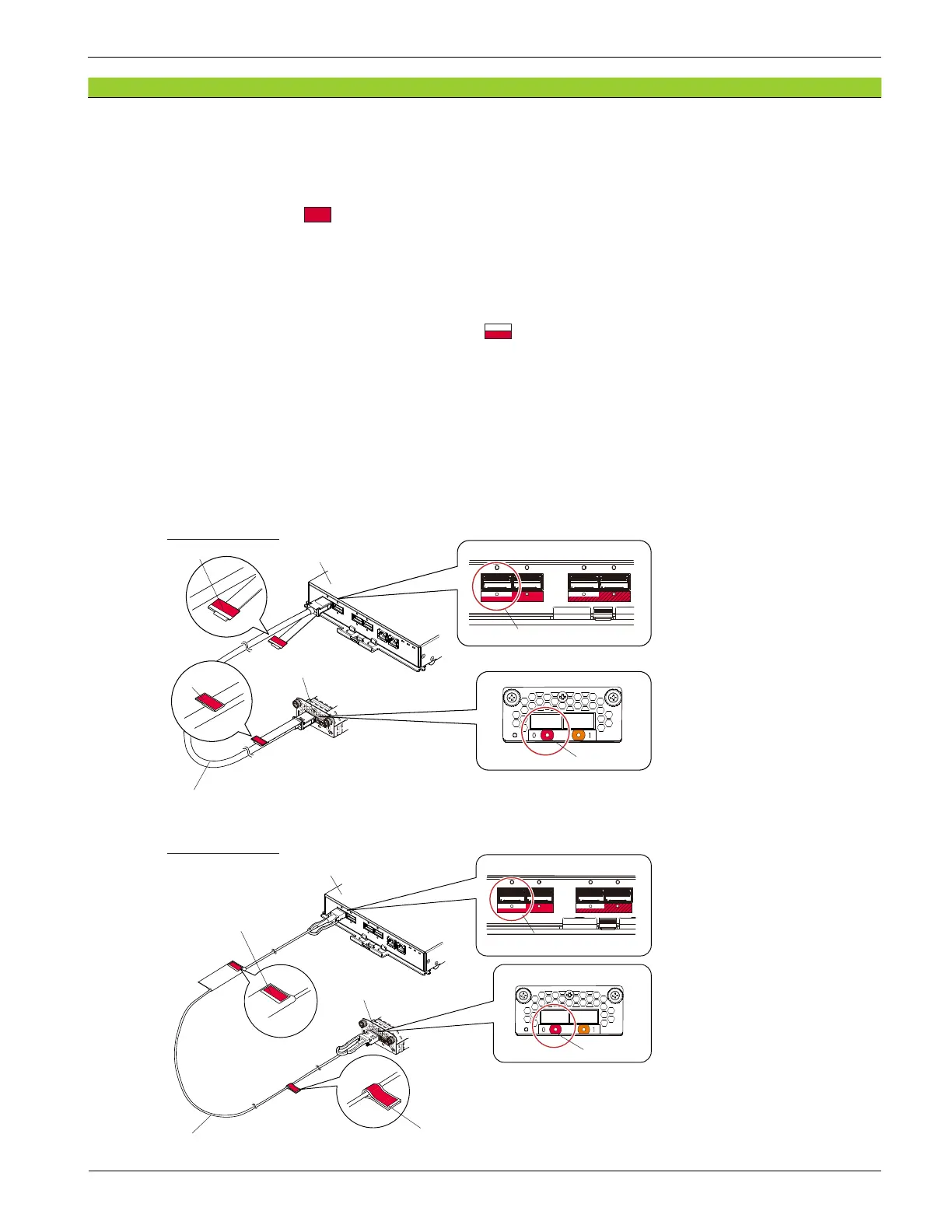

Figure 9-37 SAS Cable/NVMe Cable Connection
The connection for SBX is illustrated in the gure below. The connection for FBX/NBX is also the
same.
ENC000-1
Red and white label
Red and white label
ENC (SBX)
For Copper Cable
Red label
DKB
Copper Cable
DKB-01H
Red label
ENC000-1
Red and white label
Red and white label
ENC (SBX)
For Optical Cable
Red label
DKB
Optical Cable
DKB-01H
Red label
To Next Page
