Copyright © 2019, 2021, Hitachi, Ltd.
DKC910IHitachi Proprietary
[INST(IN)09-04-100]
Rev.2
INST(IN)09-04-100
(3) Connect the 16 cables to the OUT ports on DBs according to Figure 5-4 (LOC05-30) or Figure 5-6
(LOC05-50) for UBX.
Example of the cable
: Connect the cable to which the red label is attached to the ENCxxx-1 OUT0
port (red label ).
(4) Connect the 16 cables mentioned in Step (3) to the IN ports on the next DBs according to Figure
5-3 (LOC05-20) or Figure 5-5 (LOC05-40) for UBX.
Example of the cable
: Connect the cable to which the red and white label is attached to the
ENCyyy-1 IN0 port (red and white label ).
If there are other SBX/UBX/FBX, repeat Step (3) and Step (4) to connect the SAS cables to all.

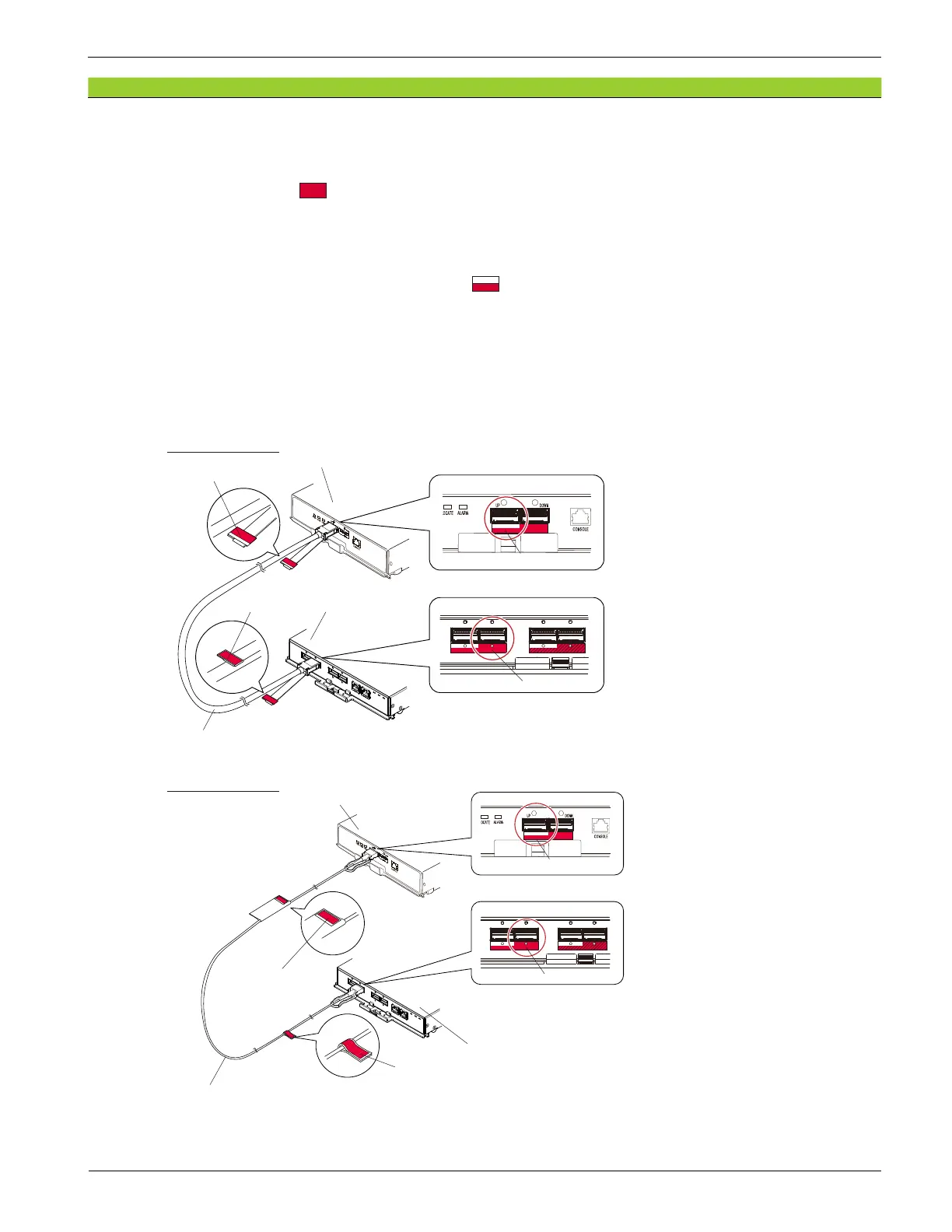

Figure 9-38 SAS Cable Connection
The connection for SBX is illustrated in the gure below. The connection for FBX is also the same.
ENCyyy-1 (*1)
Red and white label
Red and white label
ENC (UBX)
For Copper Cable
Red label ENC (SBX)
Copper Cable
ENCxxx-1
Red label
*1: yyy = xxx + 8
ENCyyy-1 (*1)
Red and white label
Red and white label
ENC (UBX)
For Optical Cable
Red label
ENC (SBX)
Optical Cable
ENCxxx-1
Red label
*1: yyy = xxx + 8
To Next Page
