4. Installing rails for Drive Box (NBX)
The rail install procedure is different depending on the hole shape (square or circular hole) on the rack.
Check the holes on the rack before the installation work.
Table 3-4 shows the components for the rails for Drive Box (NBX).
Table 3-4 Components for Rail (RRNB) (Per Unit)
Item No. Part Name Part No. Quantity Comment Remarks
1 Slide Rail 2853847-E 1 set Rail (R) and Rail (L)
−
2 Screw (SBB-RAIL)
−
4
−
(*1)
3 Pin Screw
−
8
Pin for circular hole
(*1)
4 Loop cable tie 5552567-1 2 For xing the cable
−
*1: These parts are included in Slide Rail (Item No.1).
NOTE: Front rails have two types; (R) and (L). Check that with the marking on the rail.
These rails extend or shorten back and forth.
(1) When the rack installation hole is circular, replace positioning pin with the supplied pin screw ( φ
6.8 head screw). When the rack installation hole is rectangular, go to Step (2) (remain the guide
screw ( φ 9.2 head screw) as is).

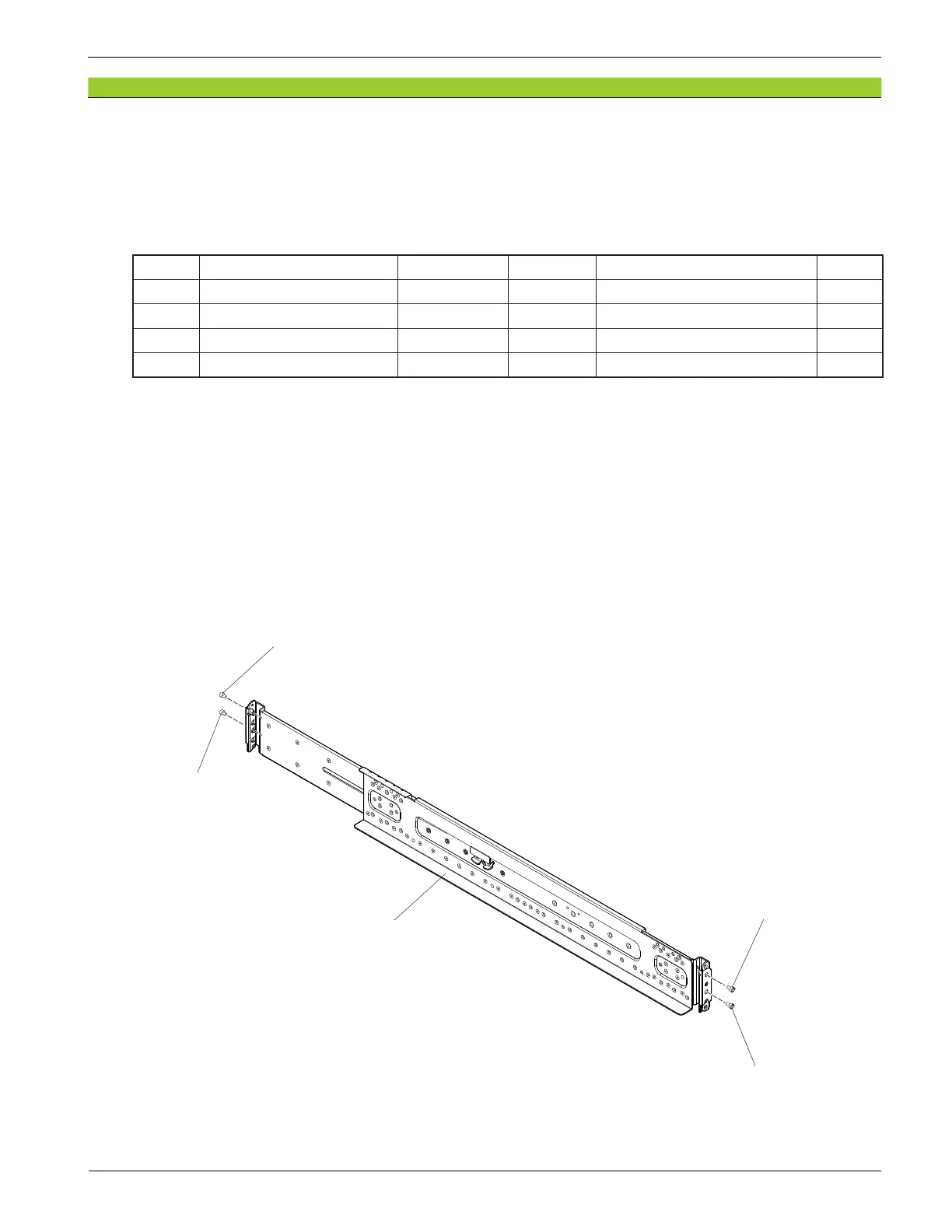

Figure 3-12 Work before Installing Rails
Rail (R)
Positioning pin
Positioning pin
Positioning pin
Positioning pin
To Next Page
