OC-3c/STM-1 (150M) POS, OC-12c/STM-4 (600M) POS MMF
OC-3c/STM-1 (150M) POS, OC-12c/STM-4 (600M) POS, OC-48c/STM-16 (2.4G) POS SMF
2.5.1.3 ATM

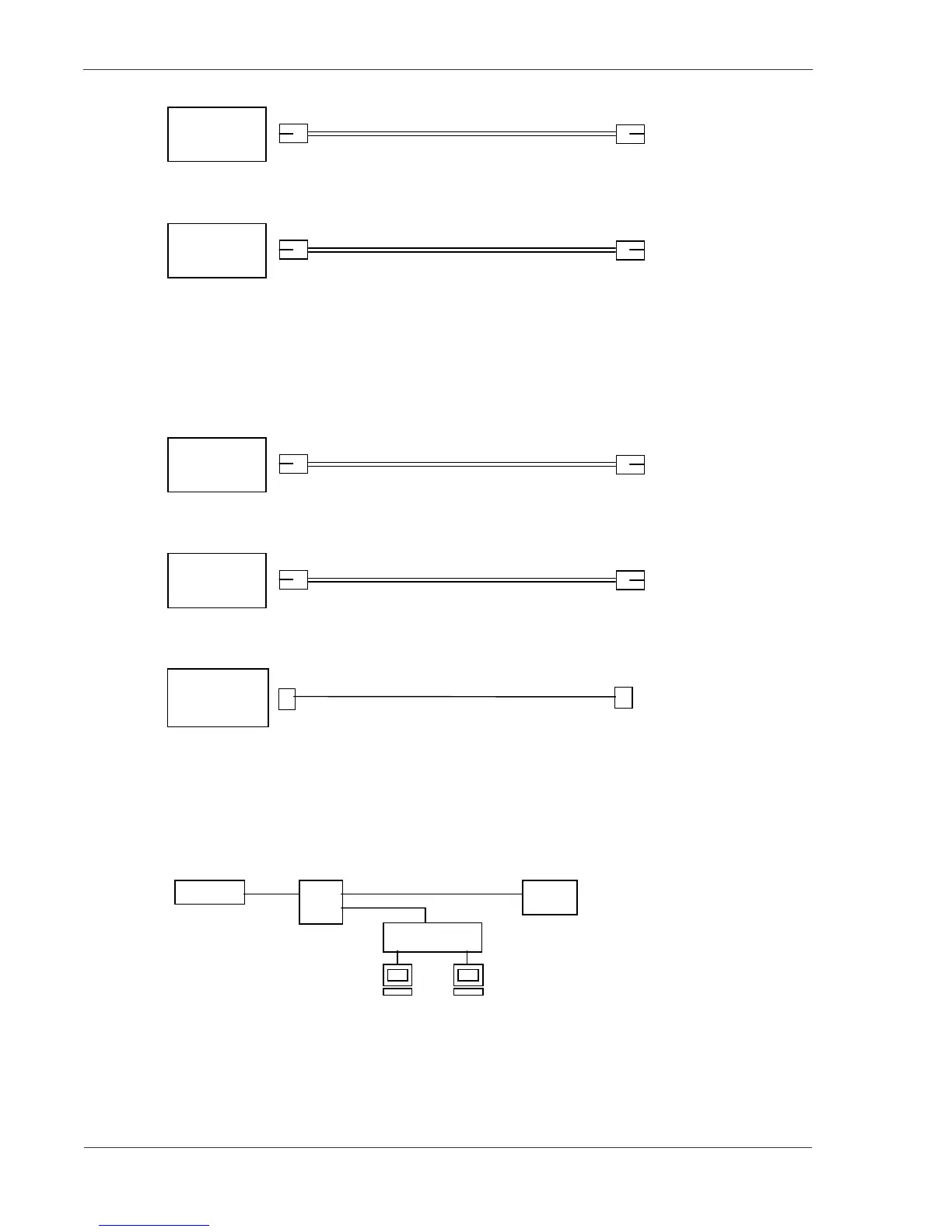

Illustrated below are the ATM interface cables and connectors. All these interface
cables are to be procured by the customer.
OC-3c/STM-1 (150M) ATM, OC-12c/STM-4 (600M) ATM MMF
OC-3c/STM-1 (150M) ATM, OC-12c/STM-4 (600M) ATM SMF
25Mbps ATM
2.5.2 Network Connections
2.5.2.1 LAN Connection
This device (router) connects to a server/terminal or a LAN switch via a hub.
SC 2-core/1-core
Multimode optical fiber
Device
SC 2-core/1-core
SC 2-core/1-core
Single-mode optical fiber
Device
SC 2-core/1-core
SC 2-core/1-core
Multimode optical fiber
Device
SC 2-core/1-core
SC 2-core/1-core
Single-mode optical fiber
Device
SC 2-core/1-core
Device
RJ-45
UTP category 3/4/5, 4-core/8-core, 2-pair, straight
RJ-45
Device HUB
Server
PC and WS, etc.
LAN Switch
