Component Details
GR2K-GA-1002 3-11
Rev. 6.03
3.3.5 RM-IO(4S), RMB-IO (4S) and RM-IO(H)
The RM-IO(4S) for GR2000-4S, the RMB-IO (4S) for GR2000-4S (BCU-S850S) and
the RM-IO(H) for GR2000-6H, GR2000-10H, and GR2000-20H physically appear as
Figure 3-12 and Figure 3-14.
TheRM-IO(4S),RMB-IO(4S)andtheRM-IO(H)eachhaveoneCONSOLE(RS232C)
port and one CONSOLE (10BASE-T/100BASE-TX) port. Table 3-9 and Table 3-10
show the connector specifications on these ports.

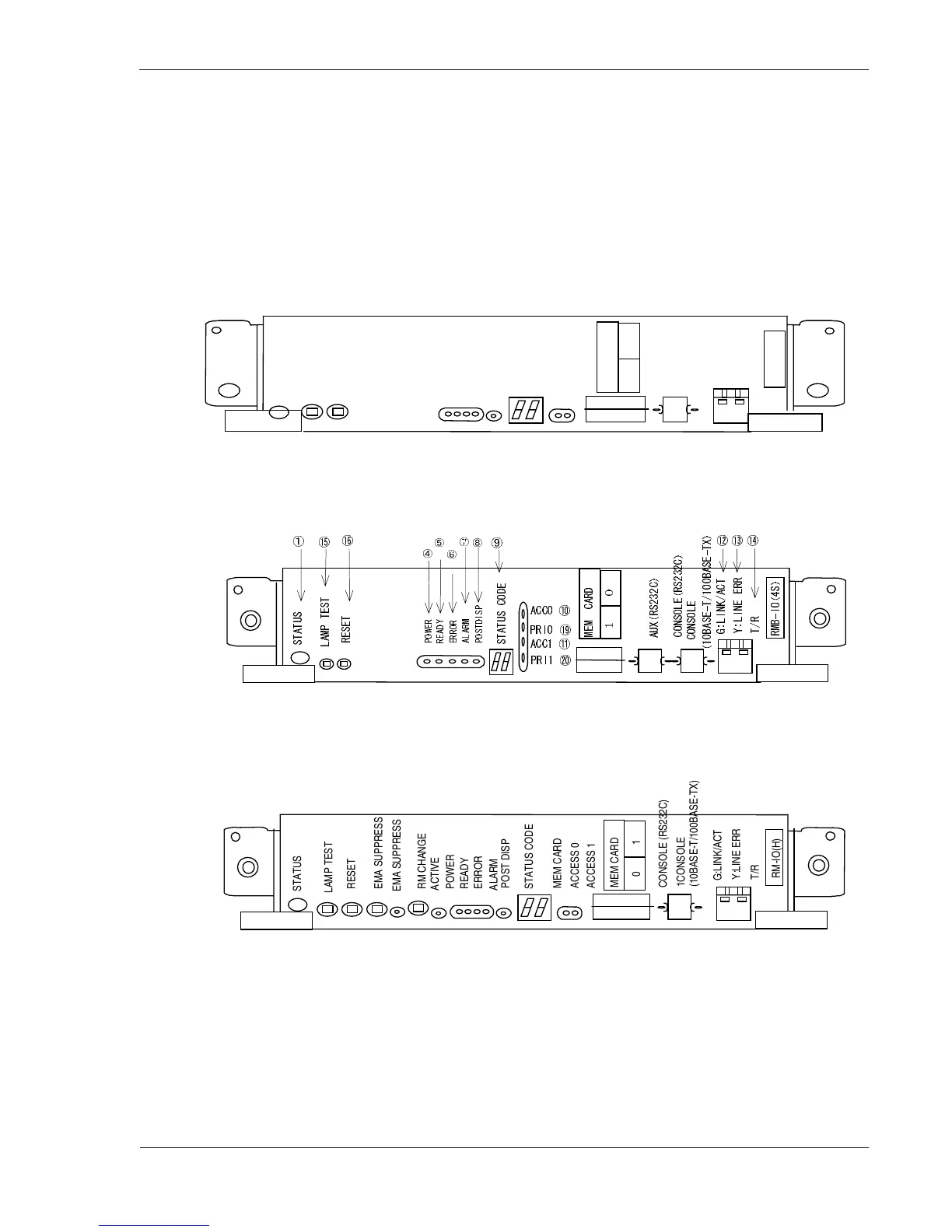

Figure 3-12 RM-IO(4S) Front Panel View
Figure 3-13 RMB-IO(4S) Front Panel View
Figure 3-14 RM-IO(H) Front Panel View
STATUS
POWER
READY
ALARM
ERROR
POST DISP
STATUS CODE
RM-IO(4S)
1CONSOLE
(10BASE-T/
100BASE-TX)
G:LINK/ACT
Y:LINE ERR
T/R
To Next Page
