3.5.1 NE100-8T, NE100-8TA and NE100-8TB
The NE100-8T, NE100-8TA, and NE100-8TB physically appear as Figure 3-22. These
NIFs each have eight ports for connection with 8-pin modular connectors of RJ-45.
Table 3-16 shows the connector specifications.

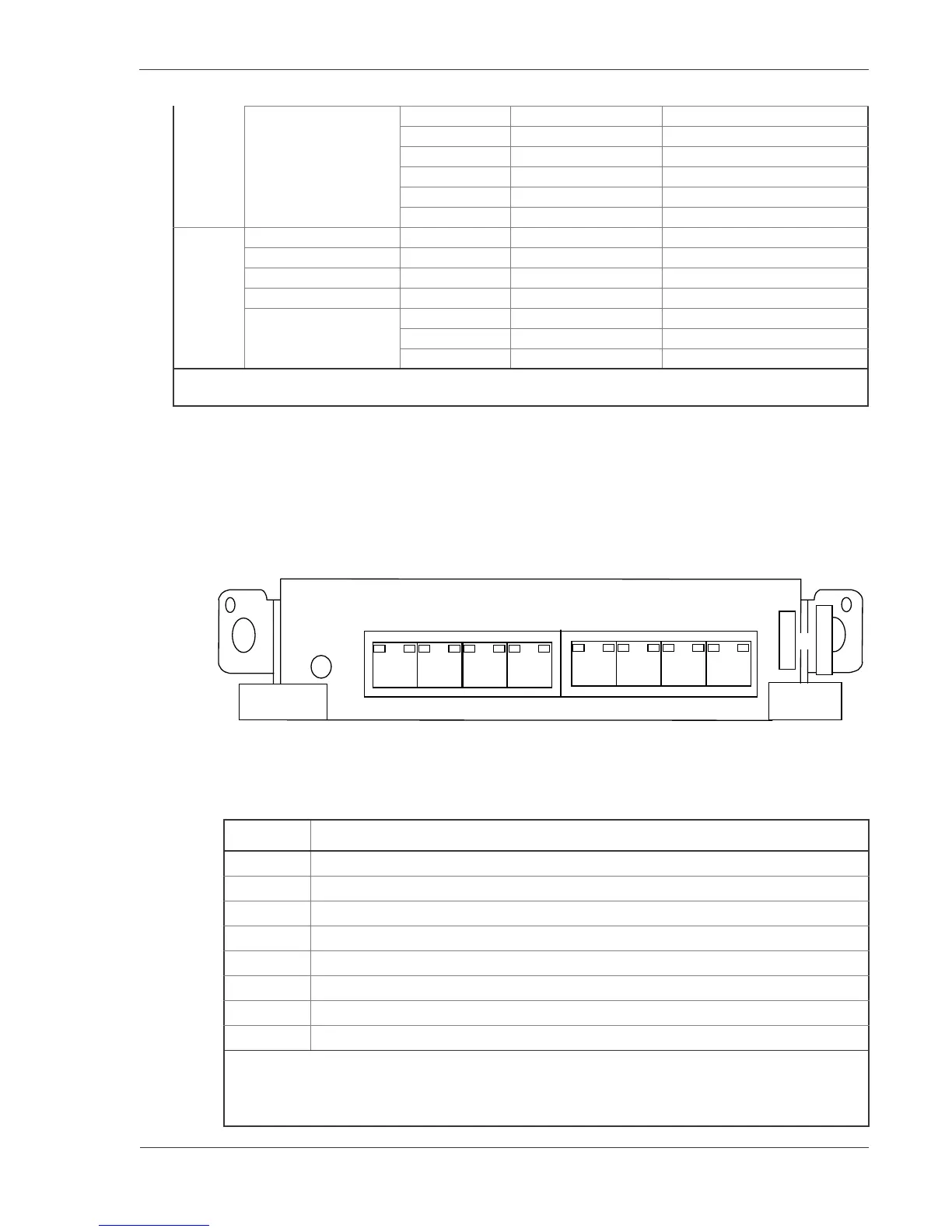

Figure 3-22 NE100-8T, NE100-8TA and NE100-8TB Front Panel View
OC-48c/STM-16 (POS) NWOC48-1S Full size, 30mm wide 2 km
NWOC48-1S4 Full size, 30mm wide 40 km
NWOC48-1S8 Full size, 30mm wide 80 km
NWOC48-1A Full size, 30mm wide 2km
NWOC48-1A4 Full size, 30mm wide 40km
NWOC48-1A8 Full size, 30mm wide 80km
ATM OC-3c/STM-1 (ATM) NAOC3-1M Half size, 30mm wide MMF, 2km
OC-3c/STM-1 (ATM) NAOC3-1S Half size, 30mm wide SMF, 15km
25Mbps ATM NA25M-1 Half size, 30mm wide 90m
OC-12c/STM-4 (ATM) NAOC12-2M Full size, 30mm wide MMF, 500m
OC-12c/STM-4 (ATM) NAOC12-2S Full size, 30mm wide SMF, 15km
NAOC3-8M** Full size, 30mm wide 2km
NAOC3-8S** Full size, 30mm wide 15km
*For Japan only
** Product intended for the Japanese market handled only by Hitachi Japan.
Table 3-16 Connector Specifications for NE100-8T, NE100-8TA and NE100-8TB
Pin No. Specifications
1 Transmit (+) (TA)
2 Transmit (-) (TB)
3Receive(+)(RA)
4Unused(UA)
5Unused(UB)
6Receive(-)(RB)
7Unused(UC)
8Unused(UD)
Note: Because the interface cable is of twisted-pair type, make TA and TB into a pair, and make RA
and RB into another pair on 10BASE-T; the other pins can be connected to one another without
particular regard to pairing, or can be left open. On 100BASE-TX, additionally make UA and UB into a
pair, and make UC and UD into another pair to cause termination within the NIF.
