Component Details
GR2K-GA-1002 3-27
Rev. 6.03

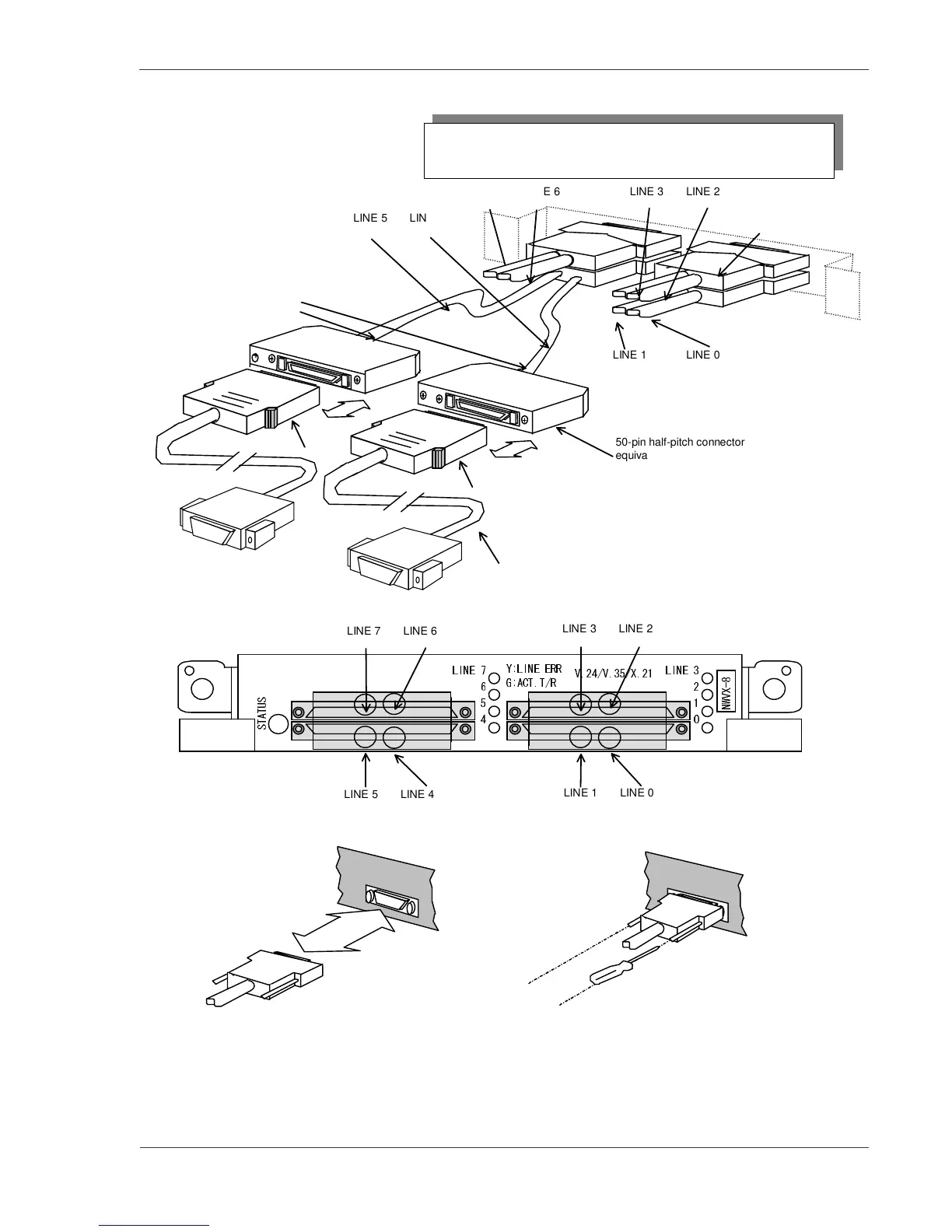

Figure 3-27 Relationship between connection of cables supplied with VX-8 and LINE
number
LINE 1 LINE 0
LINE 3 LINE 2
LINE 5 LINE 4
LINE 7 LINE 6
LINE 1 LINE 0
LINE 3 LINE 2
LINE 5 LINE 4
LINE 7 LINE 6
50-pin half-pitch connector
equivalent to that for NWVX-4
The cables
attached to VX-8
Be careful when connecting the cables attached to VX-8 to the devices that the
connector insertion faces are reversed between the lower side connectors (LINE 0,
LINE 1, and LINE 4, LINE 5) and the upper side connectors (LINE 2, LINE 3, and
LINE 6, LINE 7).
The cables attached to VX-8 have
a length of 1 m.
100-pin high-density connector
Small screw driver is recommended
When connecting the cables attached to VX-8 to the devices, tighten the connectors lightly to the standard torque of 1.5
kgf/cm by using a screw driver (a small sized screw driver is recommended).
Be extremely careful not to over-tighten
(which may cause the bolts to break).
The existing interface cables
(V.24, V.35, X.21)
00-pin high-density connecto
50-pin half-pitch connector
50-pin half-pitch connector
To Next Page
