Hitachi GR2000 Series User Manual

The NA25M-1 physically appears as Figure 3-49
.
T
h
is NIF has one port for
connection with an 8-pin modular connector of RJ-45. Table 3-74 shows the
connector specifications.

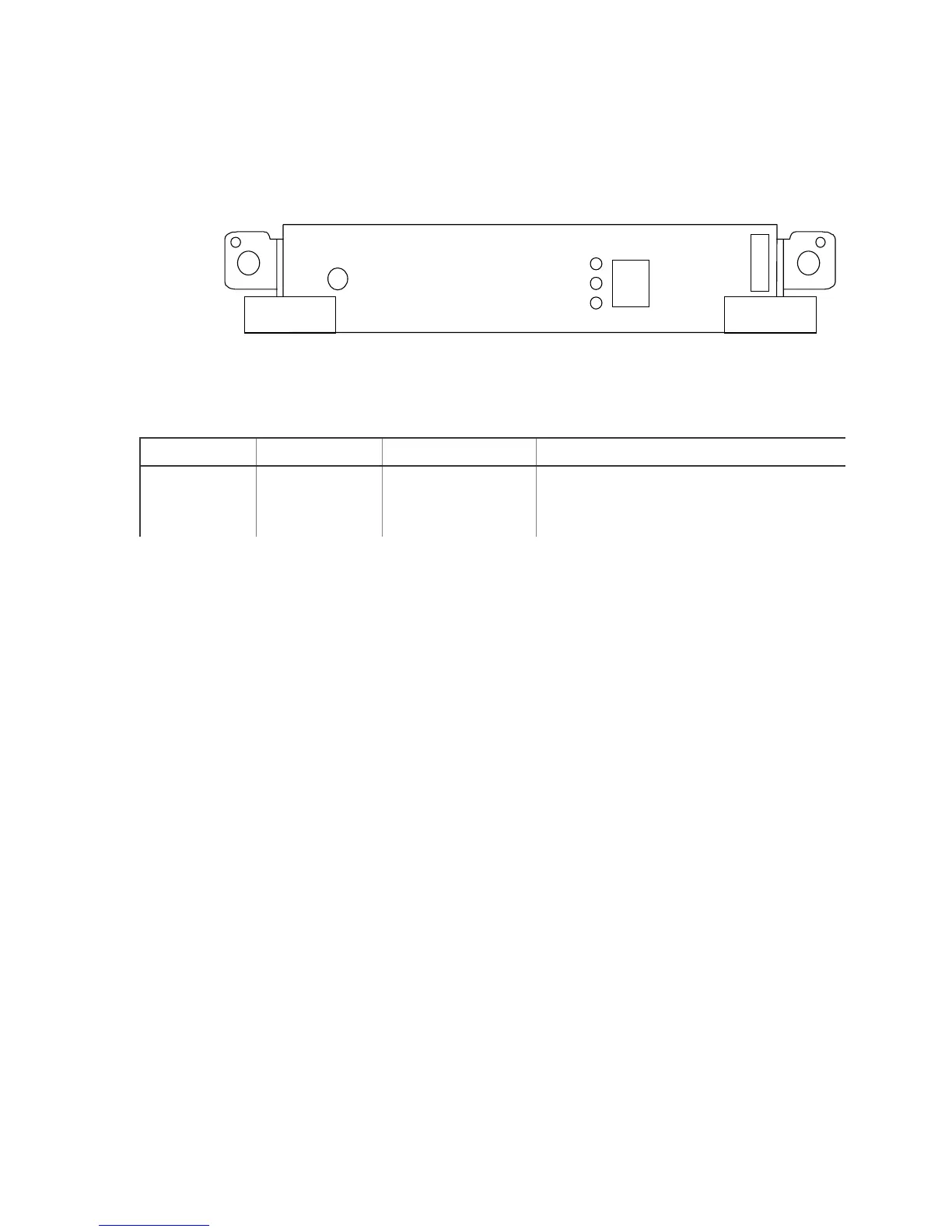

Figure 3-49 NA25M-1 Front Panel View
Switch and LED indication
Table 3-73 NWOC3-1S/NWOC3-1M switch and function of LED indications
Name LED: Color Status Content
STATUS LED: Green/
Yellow/ Red
Shows the operating
condition of NIF.
Green: Operable operation
Yellow: Blocking and the board replaceable state.
Green blinking: Under preparation (Program being
loaded.)
LINE0
STATUS
T/R
ACT
LINE ERR
NA25M-1
