3.2 Module Characteristics
The BCU, RP, and NIF modules come in half-size, full-size, and special-size boards.
See the figures below for the appearance of the half-size and full-size boards. Note
that the connectors, display, etc. in the enclosure are different for each module. See
Section 3.3, “Basic Control Unit (BCU), Section 3.4, “Routing Processor (RP) and
Section 3.5, “Network Interface Module (NIF) for more detail on these modules.

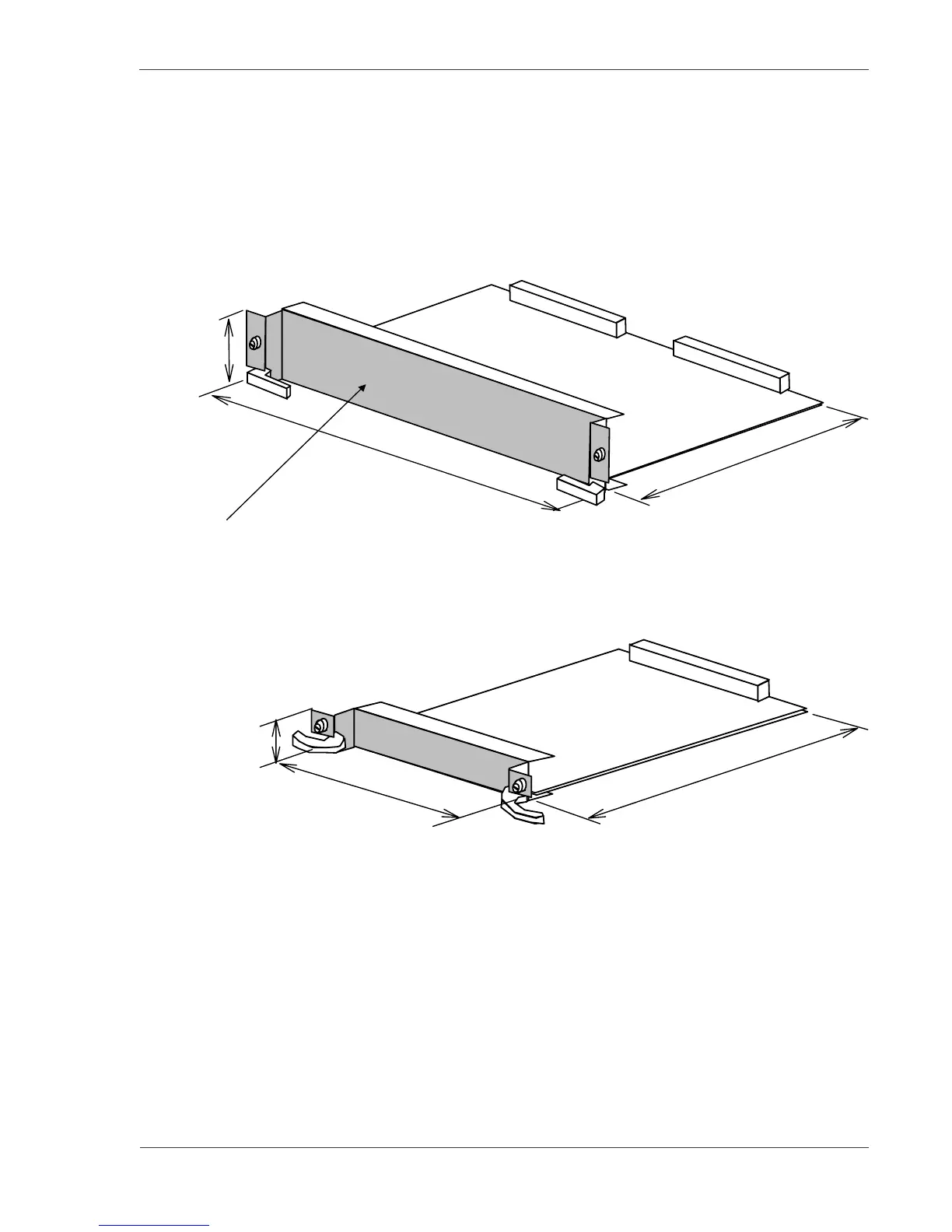

Figure 3-3 Full-Size Module
Figure 3-4 Half-Size Module
Note: Measurements do not include handles. Units are in mm.
Enclosure (height = 60, 50, or 30)
Approx. 400
(height)
Approx.
60 (width)
(Note)
Approx. 270
(depth)
Approx.
30 (width)
(note)
Approx. 200
(depth)
Approx. 270
(depth)
Note: Measurements do not include handles. Units are in mm.
