Hitachi GR2000 Series User Manual

The NWE3-2U physically appears as Figure 3-40
.
T
h
is NIF has two ports for
connection with pairs of BNC connectors (receive and transmit). Table 3-53 shows
the connector specifications.

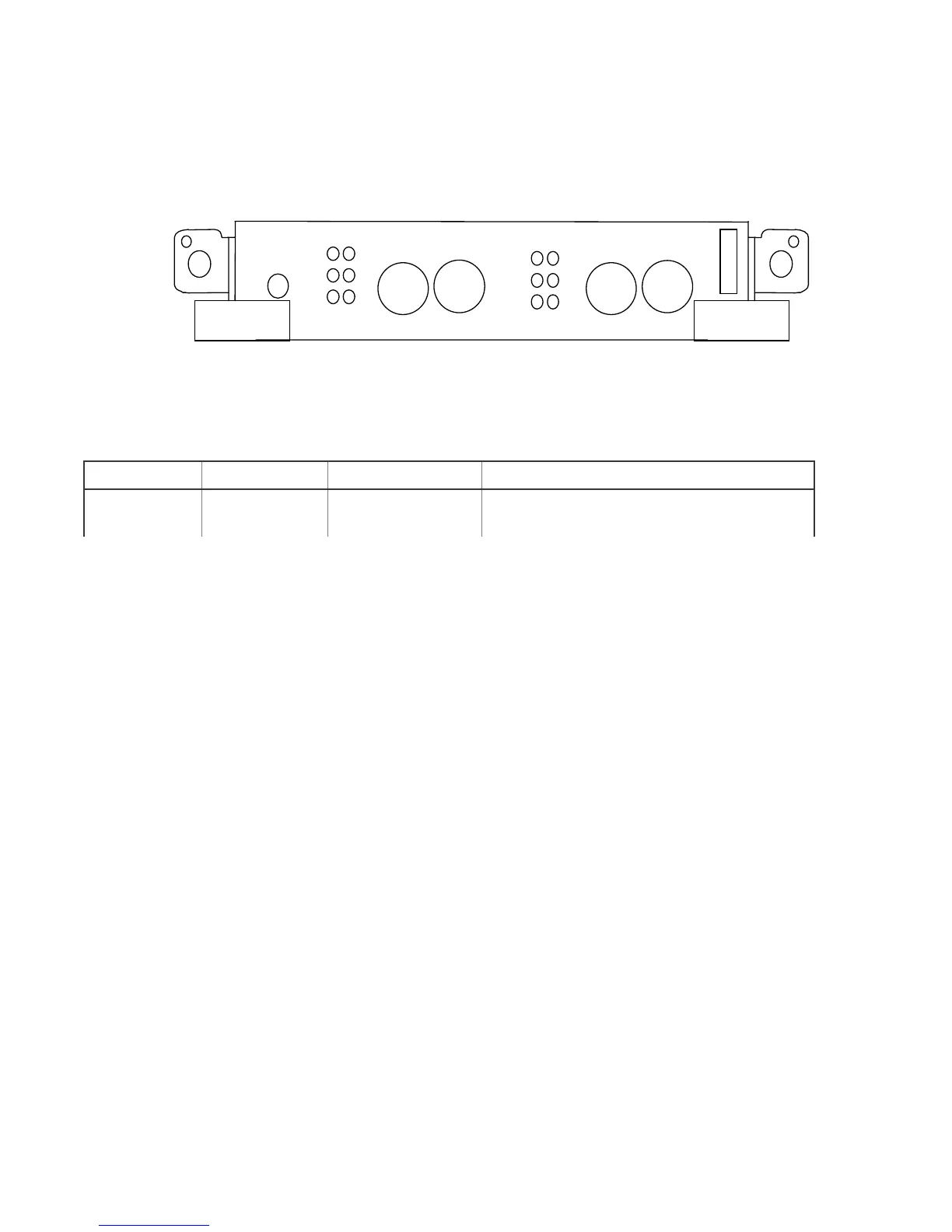

Figure 3-40 NWE3-2U Front Panel View
Switch and LED indication
Table 3-51 NWE3-2U switch and function of LED indications
Name LED: Color Status Content
STATUS LED: Green/
Yellow/ Red
Shows the operating
condition of NIF.
Green: Operable operation
Yellow: Blocking and the board replaceable state.
STATUS
NWE3-2U
UNCHANNELIZED E3 34Mbps
LINE 1
T
R
LINE ERR
ACT
T/R
LOOP
LOS
RAI
LINE 0
T
R
