Hitachi GR2000 Series - Nwe1-8

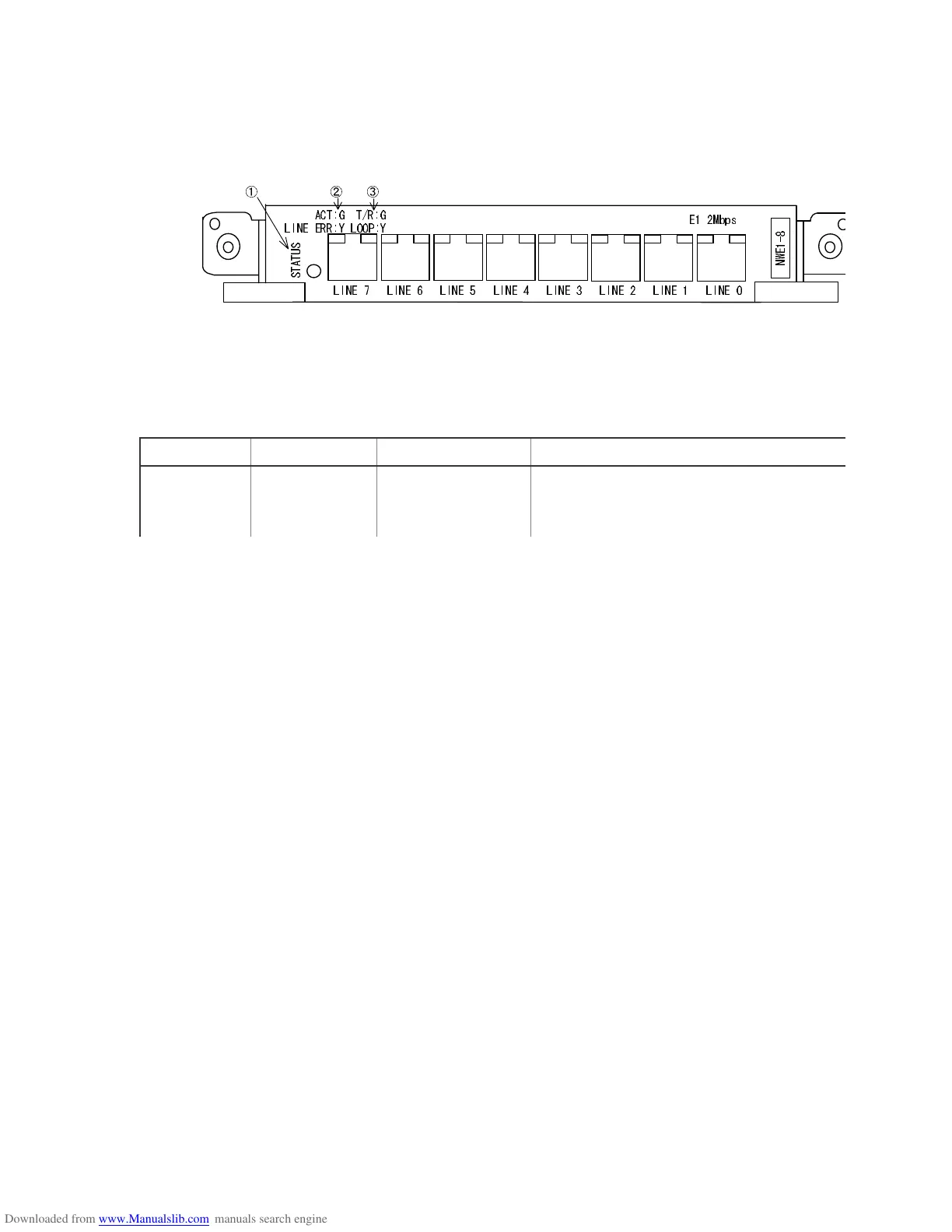

The NWE1-8 physically appears as
F
igure 3-54.
Figure 3-54 NWE1-8 Front Panel View
Switch and LED indication
Table 3-84 NEW1-8 switch and function of LED indications
Name LED: Color Status Content
STATUS LED: Green/
Yellow/ Red
Shows the operating
condition of NIF.
Green: Operable operation
G
reen blinking: Under preparation (Program being
loaded.)
Y
ellow: Blocking and the board replaceable state.




























