Hitachi GR2000 Series User Manual

GR2000 Installation Guide
2-4 GR2K-GA-1002
Rev 6.03

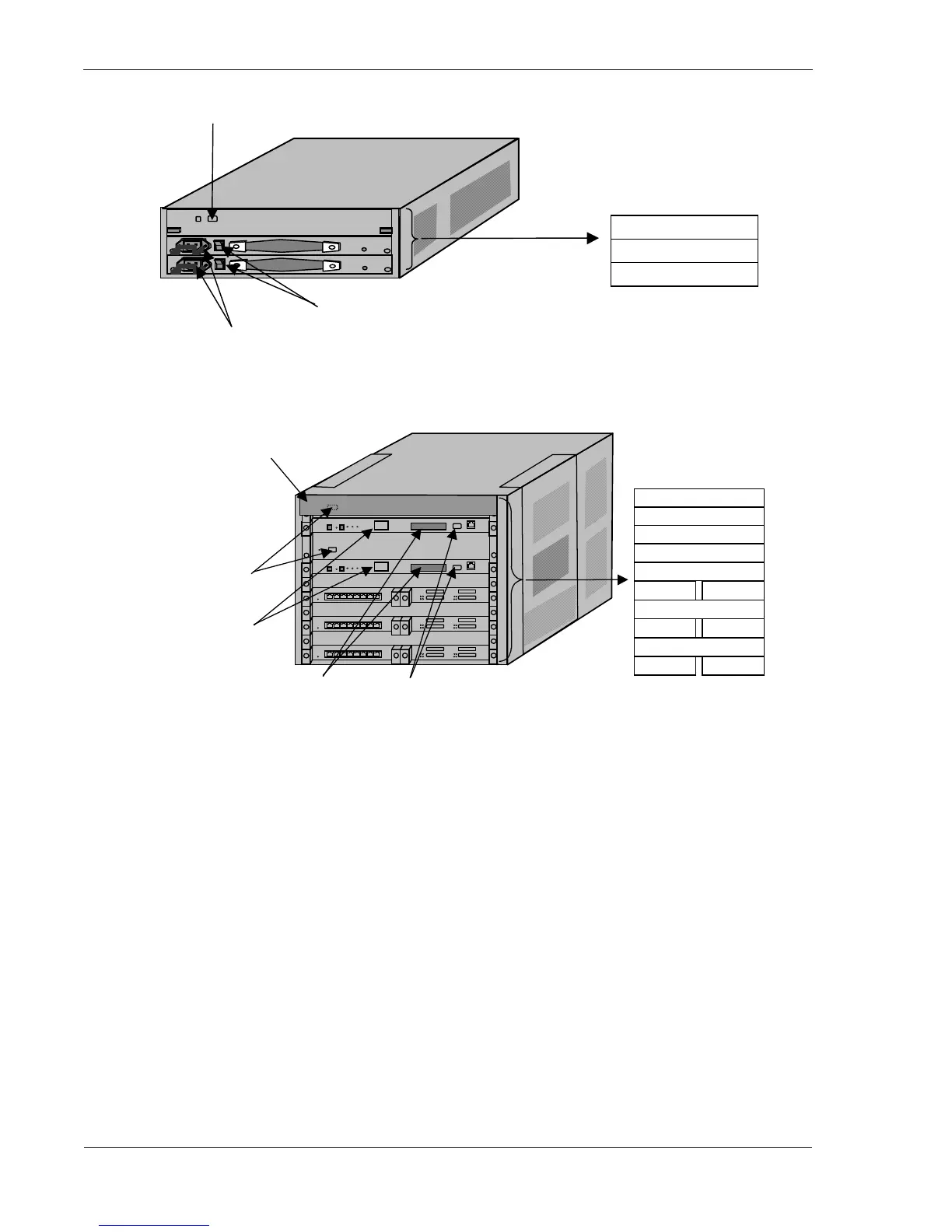

Figure 2-4 Rear View of GR2000-4S (AC Input)
Figure 2-5 Front View of GR2000-6H (AC Input)
POW1
POW0
RM-CPU
Power switch
Power cord receptacle
RS-232C port (for AUX)
Memory card slot
LED (status
indicator)
NIF1 NIF0
RM-IO0
RP0
88
88
Acrylic Cover
RS-232C port
(for AUX)
None in case of
RMB-CPU
RS-232C port (for console)
Two (CONSOLE & AUX) in case
of RMB-10
RM-IO1
RM-CPU0
RM-CPU1
NIF3 NIF2
RP1
NIF5 NIF4
RP2
