3.5.5 NWVX-8

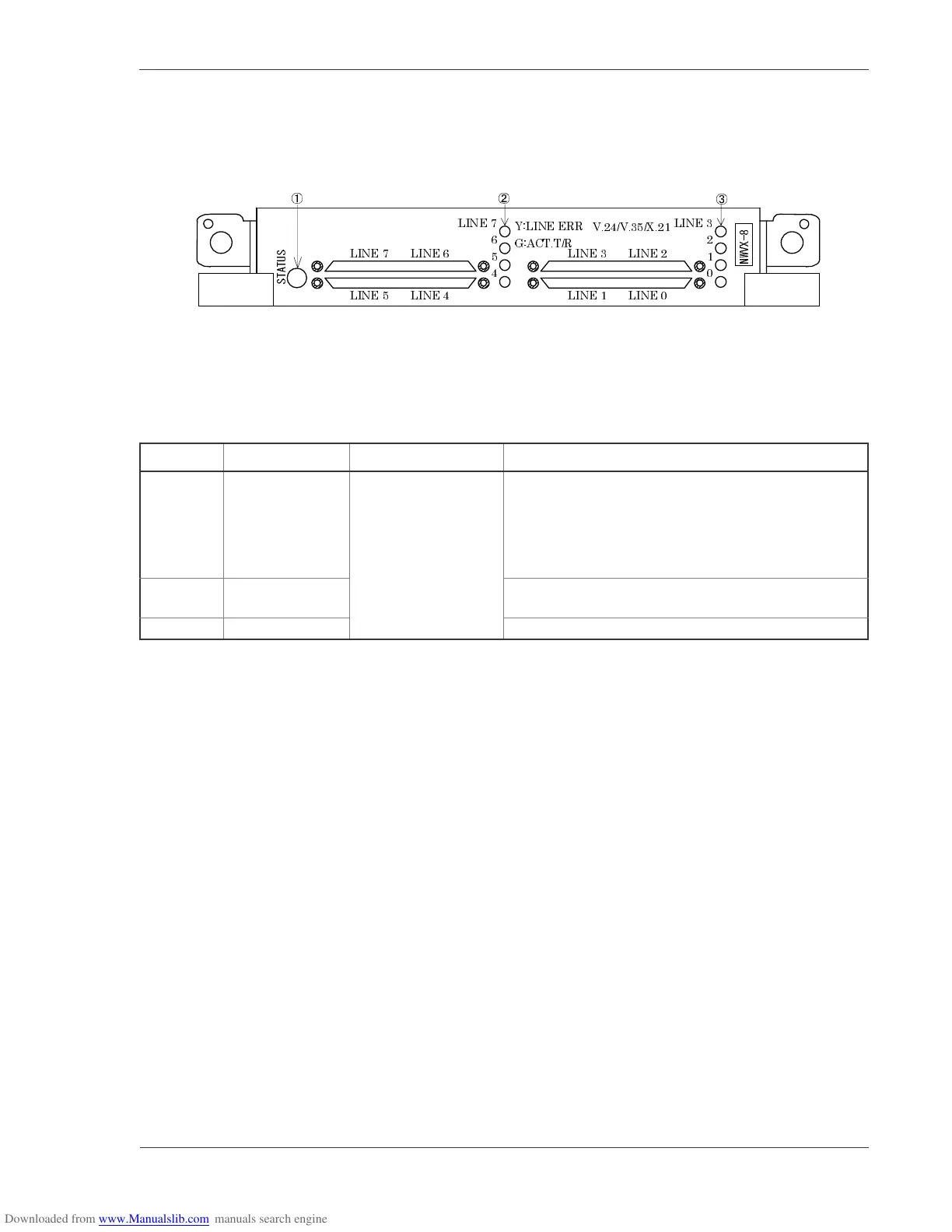

The NWVX-8 physically appears as Figure 3-26.
Figure 3-26 NWVX-8 Front Panel View
Switch and LED indication
Table 3-26 NWVX-8 switch and function of LED indications
Name LED: Color Status Content
STATUS LED: Green/
Yellow/Red
Shows the operating
condition of NIF
Green: Operable operation
Yellow: Blocking and the board replaceable state.
Green blinking: Under preparation (Program
beingloaded.)
Red: Fault Extinguished: Operation not possible
(Including thedevice power supply being turned off)
ACT, T/R LED: Green Shows the operating
condition of each line.
Line operation (open) state.
Green: State of transmission and reception signals in line.
LINE ERR LED: Yellow Yellow: Line fault detection.
LINE 3
2
1
0
LINE 7
6
5
4
