Product Overview
GR2K-GA-1002 2-3
Rev 6.03

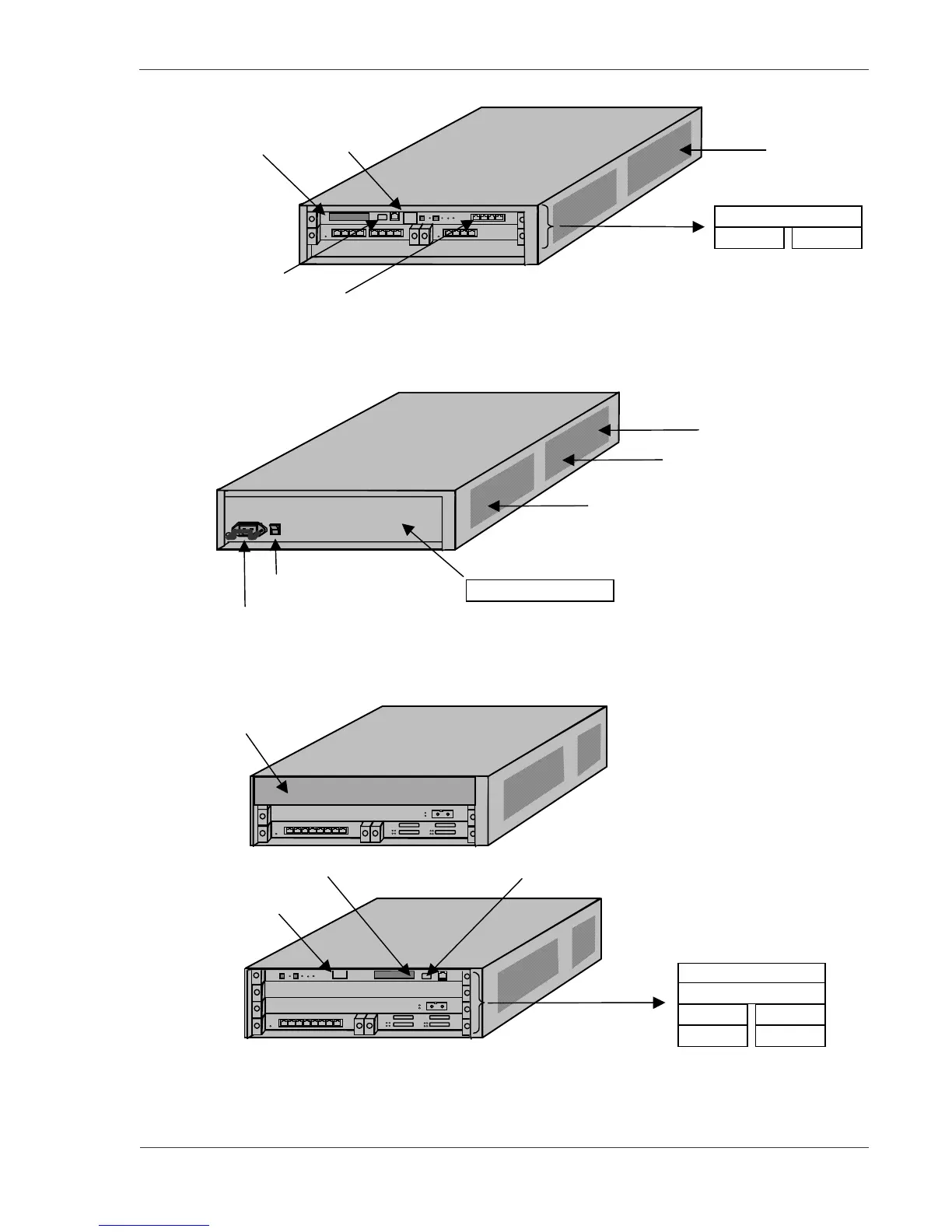

Figure 2-1 Front View of GR2000-2S (AC Input)
Figure 2-2 Rear View of GR2000-2S (AC Input)
Figure 2-3 Front View of GR2000-4S (AC Input)
88
Memory
card slot
LED (status
indicator)
NIF1 NIF0
RMP
RS-232C port
(for console)
Integrated Ethernet port (10M/100M) x 4
FAN3
RM-CPU with POW
Power switch
Power cord receptacle
FAN4
FAN2
FAN1
Memory card slot
LED (status
indicator)
3
Acrylic Cover
3
88
NIF3
NIF0
NIF2
NIF1
R
M-IO
RP
RS-232C port (for console)
