GR2000 Installation Guide
3-28 GR2K-GA-1002
Rev. 6.03
Line numbers for the cables attached to VX-8

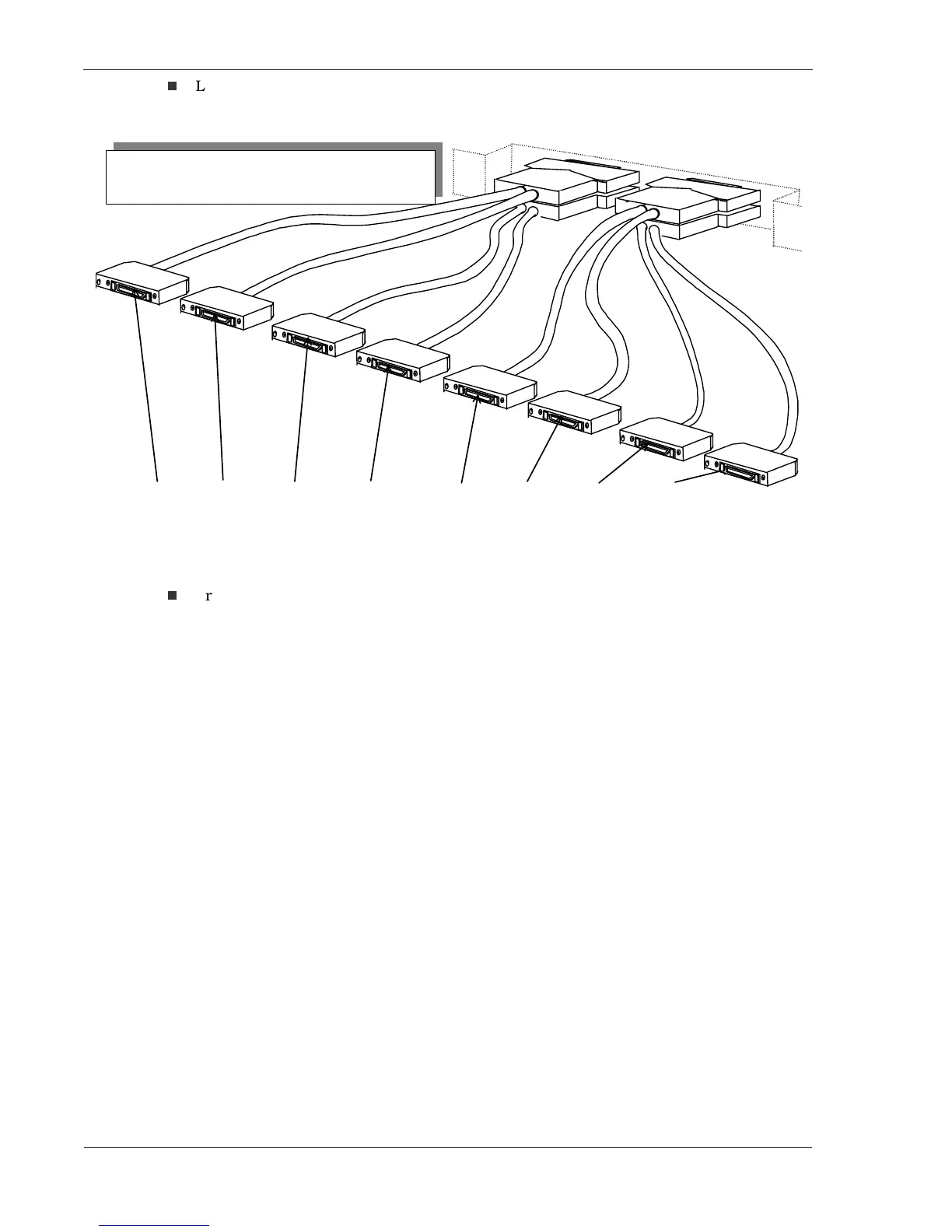

Figure 3-28 Line numbers for the cables attached to NWVX-8
Precautions when using the cables attached to VX-8
1. The tips of the cables attached to VX-8 can be connected with loop connectors
(the same as those for NWVX-4). This connection makes the loop connector test
possible.
2. The tips of the cables attached to VX-8 should be protected from dust when not
connected by covering them with vinyl bags.
Figure 3-29 Precautions when using the cables attached to VX-8
LINE#3 LINE#2 LINE#1 LINE#0LINE#7 LINE#6 LINE#5 LINE#4
Be careful when connecting the cables attached to VX-8 to the devices
that the connector insertion faces are reversed between the lower side
connectors (LINE 0, LINE 1, and LINE 4, LINE 5) and the upper side
connectors (LINE 2, LINE 3, and LINE 6, LINE 7).
