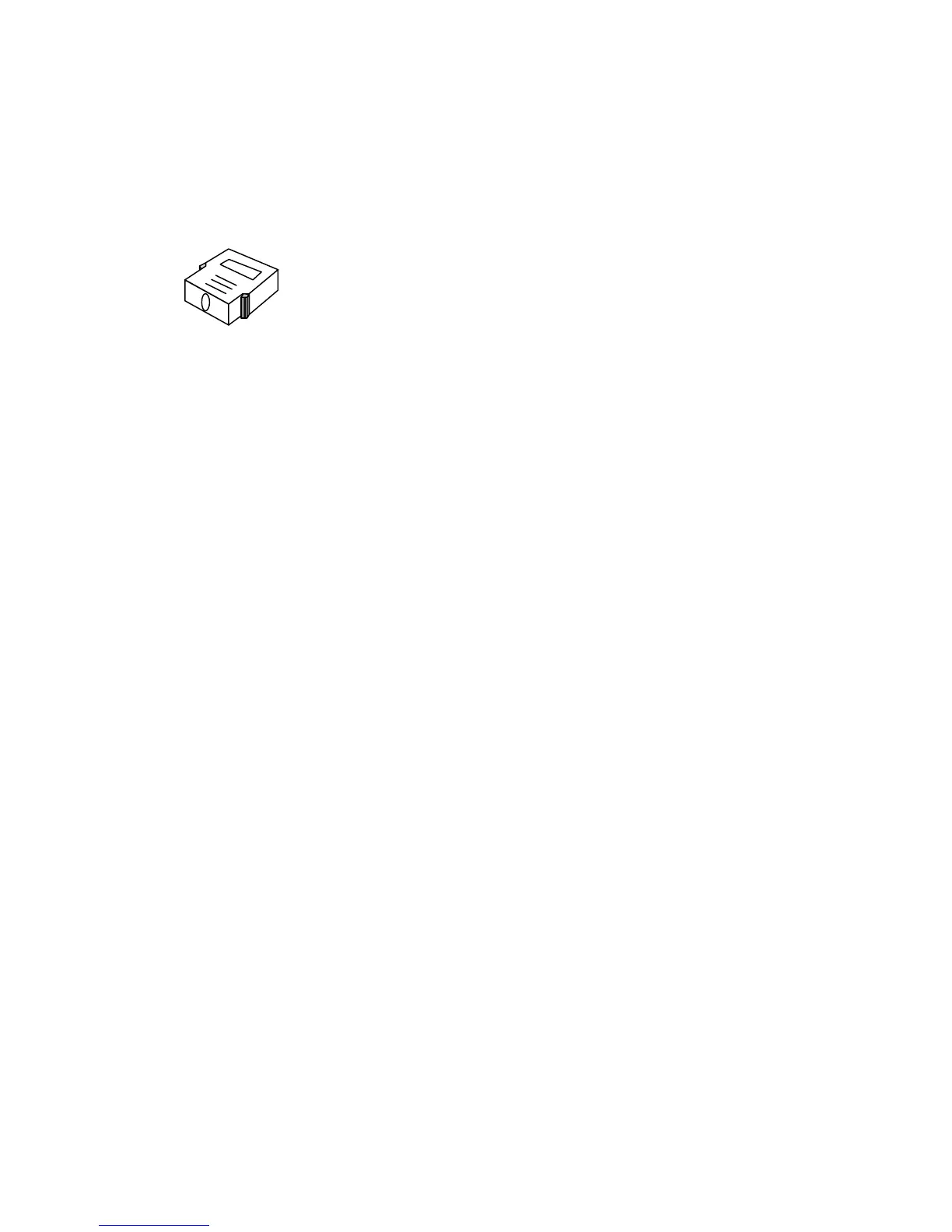

A loop connector for the WAN line is suppled by each router model. Figure 3-69
shows this WAN Loop Connector.
Figure 3-69 WAN Loop Connector
3.9.3 V.24, V.35, and X.21 Interface Cables
These interface cables are supplied as fittings, while the other interface cables are
the customer responsibilities. Depending on the type of connection (indirect or direct)
and the distance as shown in Figure 3-70 and Table 3-93, a cable with an
appropriate part number needs to be specified. Subsection 3.9.3.1 through
50-Pin Half-Pitch Connector
To Next Page
