The POW-M100H comprises one AC input unit (SWR4820-U), one power cord, and
three DC-DC power units (two DC38001-Us for 3.3V/24V dc output and one
DC46003-U for 3.3V/5V dc output). The POW-M100HA comprises one AC input unit
(SWR4820-U), one power cord, and one DC-DC power unit (DC46003-U).

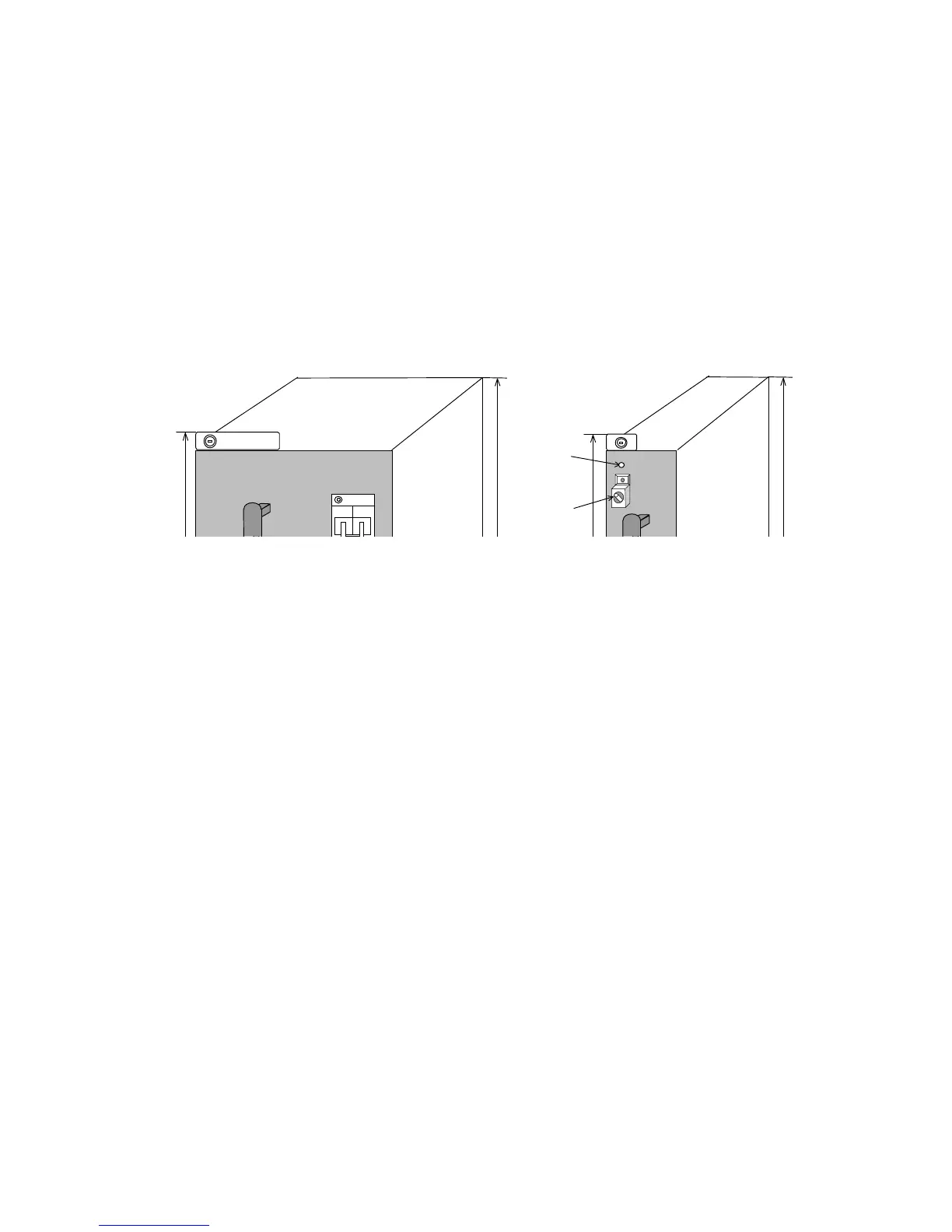

Figure 3-58 illustrates the AC input unit and (one of) the DC-DC power unit(s) of the
POW-M100H and the POW-M100HA. The dimensions are approximate (in mm), and
the drawing is not to scale.
Be noted that the locations for these components are fixed. See Table 3-88, and see
also Figure 2-7 and Figure 2-8 in Subsection 2.2.
175
LED
SW1
173
