NWVX-8 is supplied with the cables attached to VX-8.

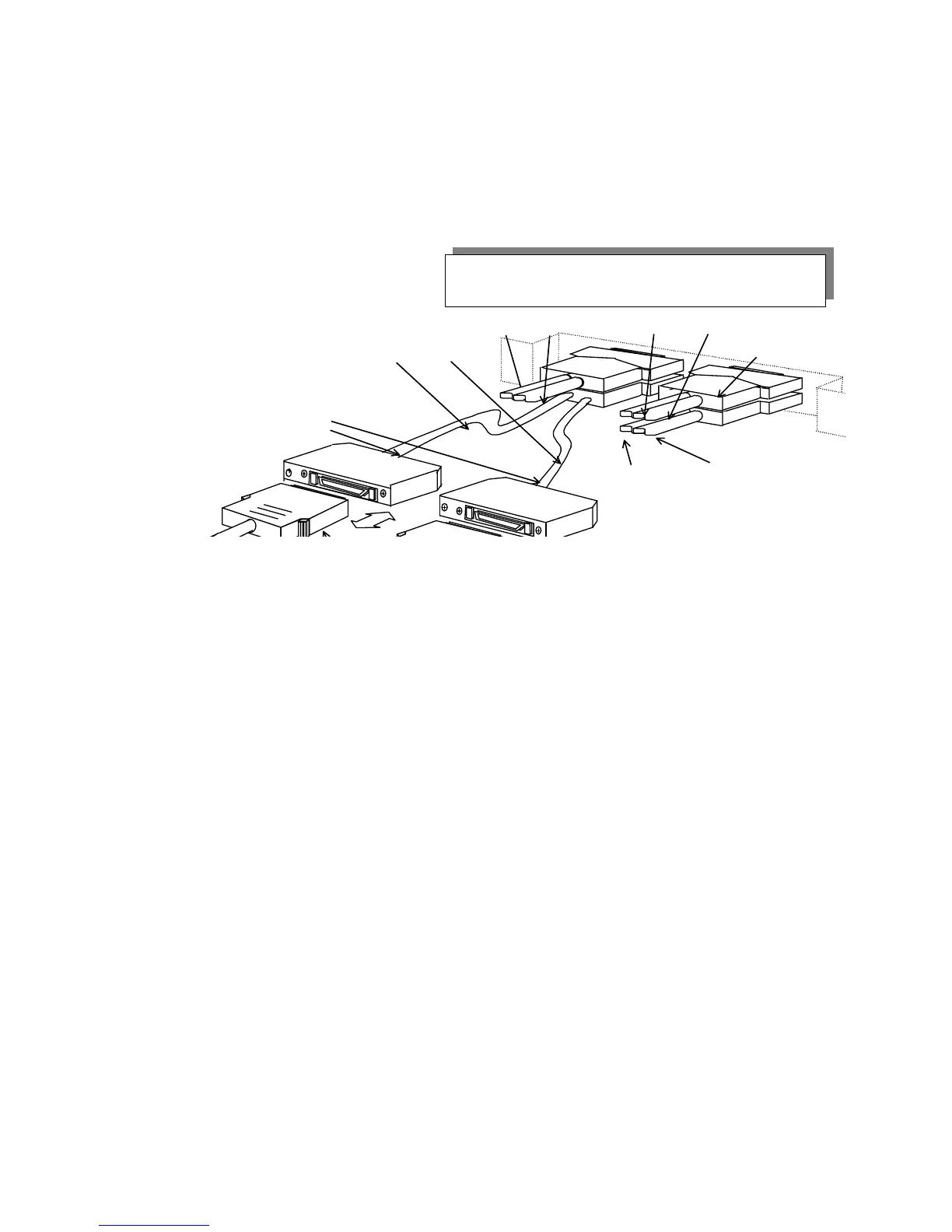

Connect the cables attached to VX-8 (100-pin high-density connector) as show
below.
The tips of the cables attached to VX-8 have connecting sections for the same
50-pin half-pitch connectors (LINE 0 to LINE 7) as in NWVX-4.
LINE 1 LINE 0
LINE 3 LINE 2
LINE 5 LINE 4
INE 7 LINE 6
The cables
attached to VX-8
Be careful when connecting the cables attached to VX-8 to the devices that the
connector insertion faces are reversed between the lower side connectors (LINE 0,
LINE 1, and LINE 4, LINE 5) and the upper side connectors (LINE 2, LINE 3, and
LINE 6, LINE 7).
The cables attached to VX-8 have
a length of 1 m.
100-pin high-density connect
To Next Page
