5-2

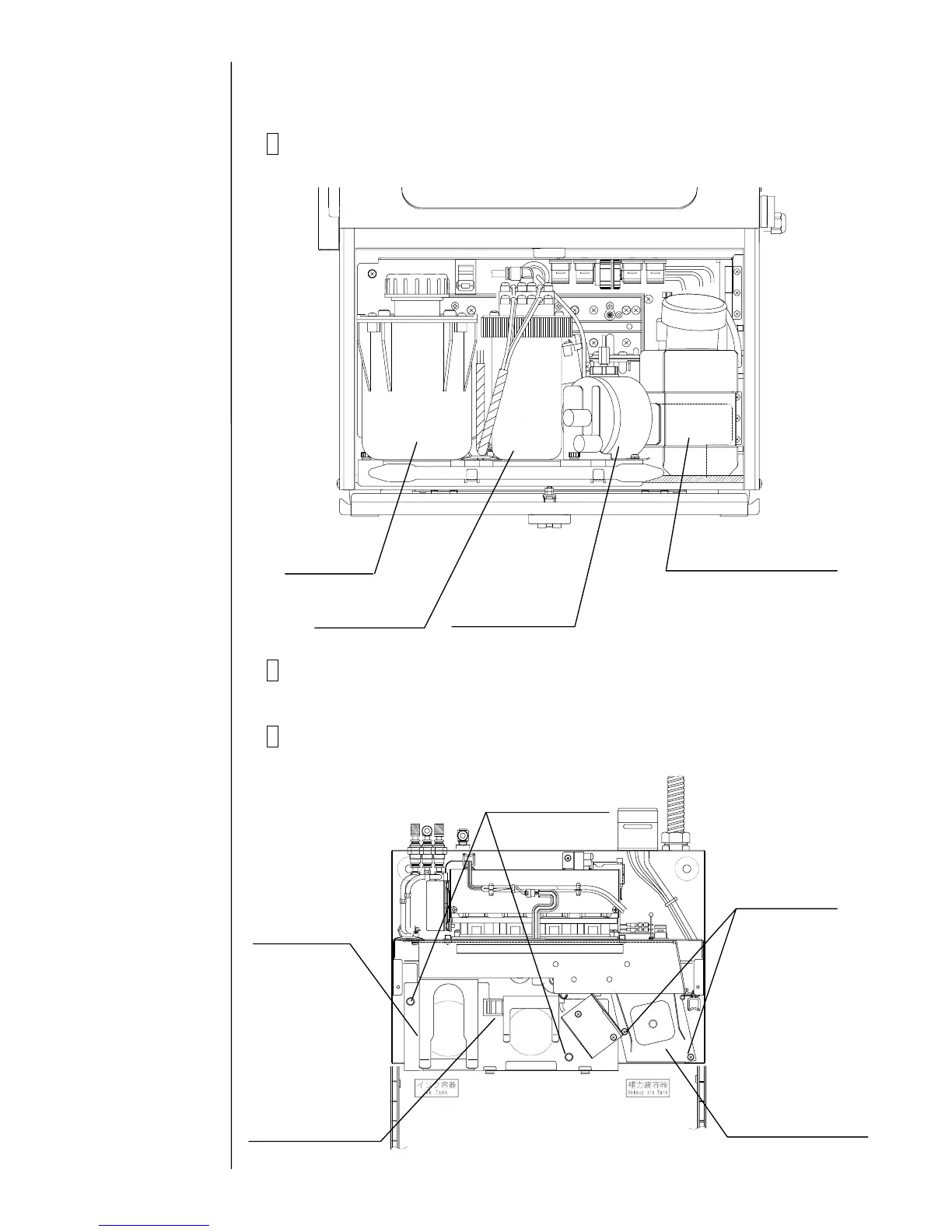

5.1.2 Approach to the parts on the front side of the equipment
1 Remove the ink reservoir, makeup ink reservoir, main ink tank and ink
filter from each holder and put them in safe place.
2 Remove the two knurled screws fixing reservoir holder, the tube from tube
clamp, and then remove the reservoir holder.
3 Remove the two screws fixing makeup ink reservoir holder and then
remove the makeup ink reservoir holder.
Makeup ink reservoir
Ink
reservoir
Main ink tank
Ink filte
r
knurled screws
Reservoir
holder
Makeup ink
reservoir holde
r
Fixin
g
screw
Tube clam
p
