6. Remo

ve the Ethernet cables from SVP ports LAN3 and LAN4, and attach them to the

Ethernet switches.

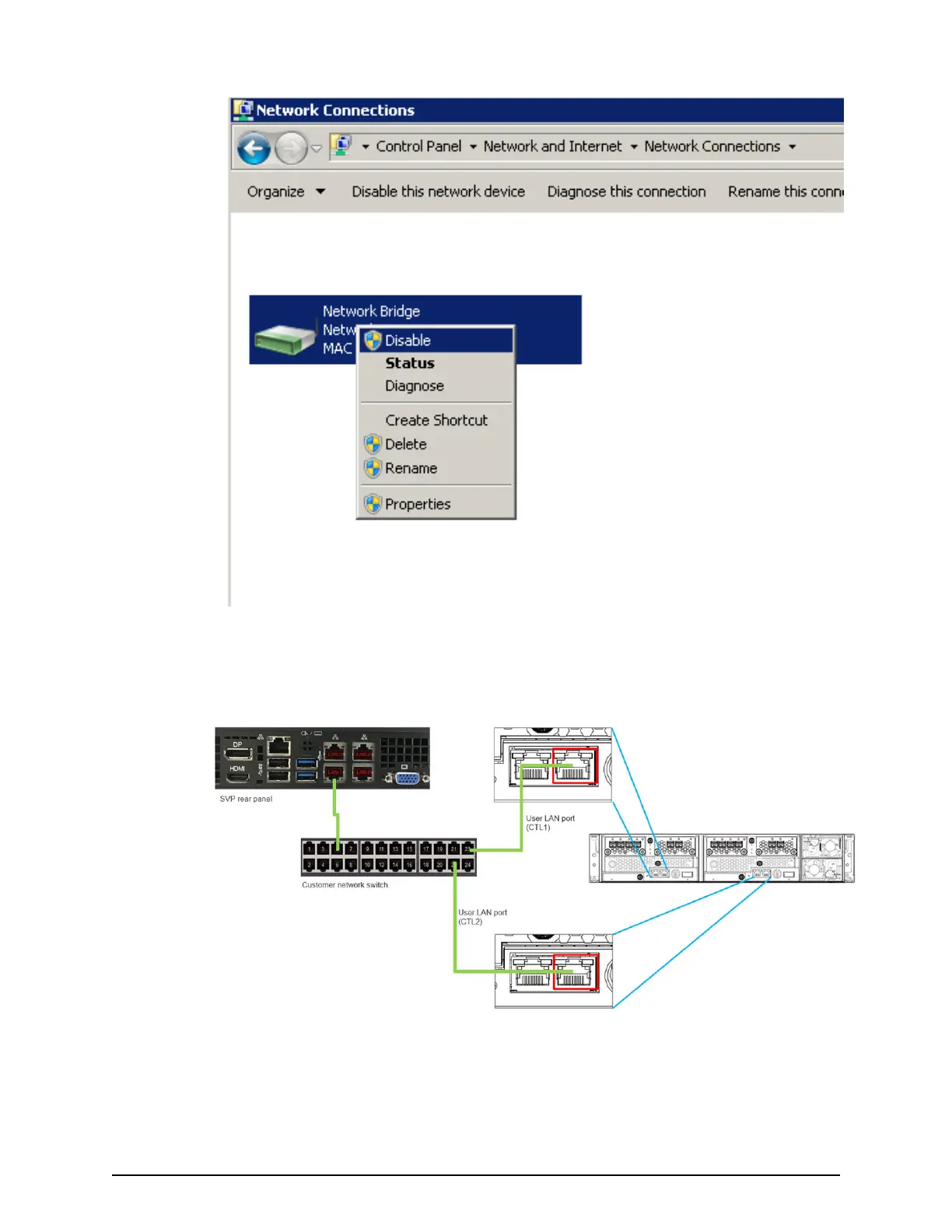

The following gure shows a CBSS and CBSL storage system in a non-bridged

environment.

The following gure shows a CBLM and CBLH storage system in a non-bridged

environment.

Operating the physical SVP in a non-bridged network congur

ation

Chapter 4: Installing the Hitachi Vantara-supplied SVP

Service Processor Technical Reference 36
