Holip hlp-c+ - Operation Instruction; DC Voltage

- 19 -
HLP-C
+
Inverters
⑶ Operation instruction

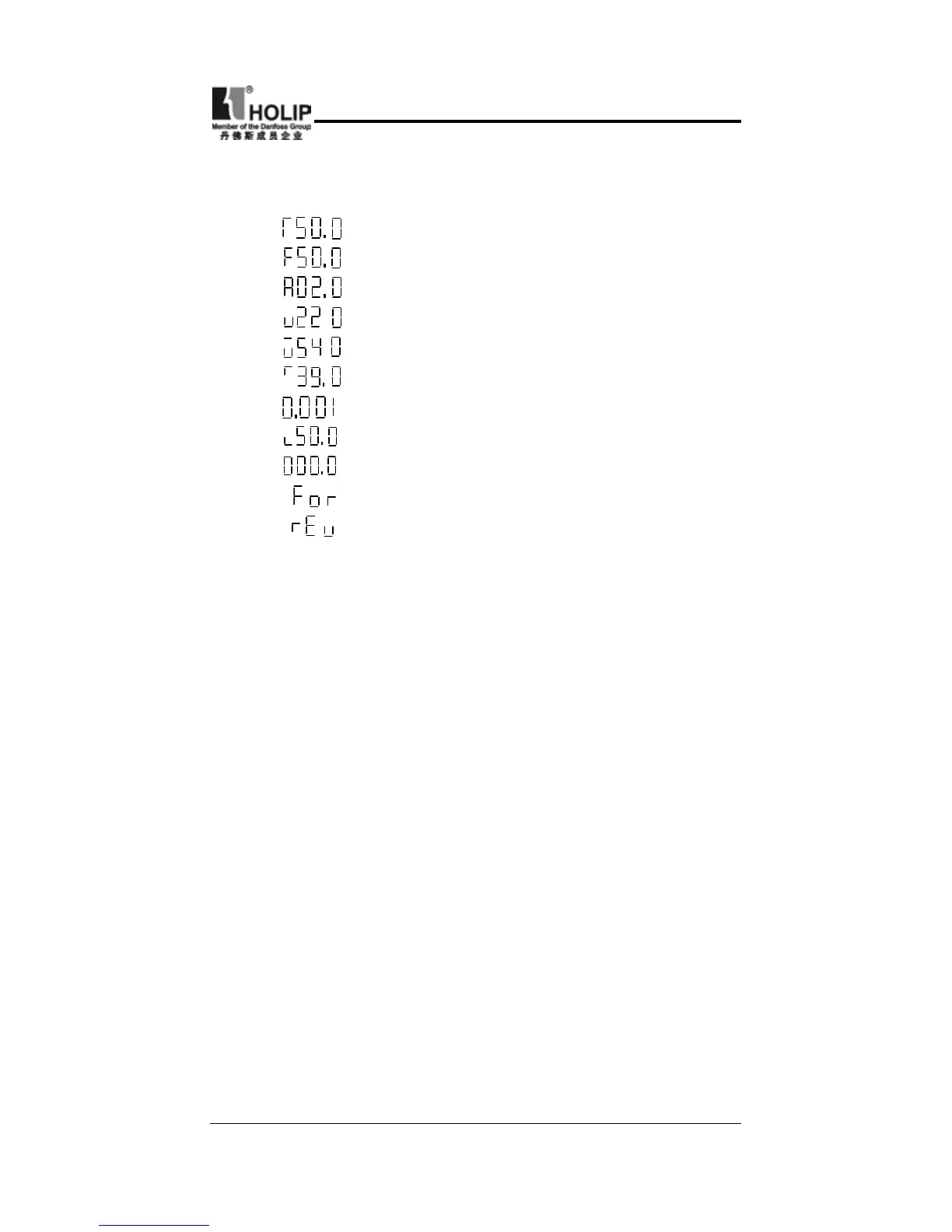

A. Description: Displaying Contents
1、
Output Frequency 50.0Hz
2、
Set Frequency 50.0Hz
3、
Output Current 2.0A
4、
Output Voltage 220V
5、
DC Voltage 540V
6、
Temperature 39
℃
7、
Counter
8、
PID feedback is 50%
9、
Revolution
10、
Forward Moving
11、
Reverse Moving
B. DC voltage, the temperature, counter, PID feedback and
revolution can only be displayed after setting. For specific
parameter refer to C121.
C. Show the interface content before power off at power on
D. Under the status of FOR, REV, CXXX and parameter content,
it can automatically return to the interfaces of frequency,
voltage, electric current, etc. automatically after several seconds.
E. Under the status of Running and Stopping, it continues to
display the original interface. But the corresponding contents
will change with the running situation and the indicator lamp
will indicate the corresponding status. During the operation the
fan is running and when stopping the fan stops running.
