(2) Acel/Decel Time of each speed is set by PLC Acel/Decel
Time C027 and C028. Refer to the detail descriptions of C027
and C028.
(3) Running Time is set by Timer C042~C049. For the control
step not used the timer can be set to 0.
(4) Running direction of each speed is determined by C026.
(5) In the internal control multi-speed running the running
time and direction are determined by the setting of internal
parameters. Any external switch of time and For/Rev rotation is
invalid.
(6) Restart after power off. It will restart from the main speed.
The status before the power off will not be memorized.

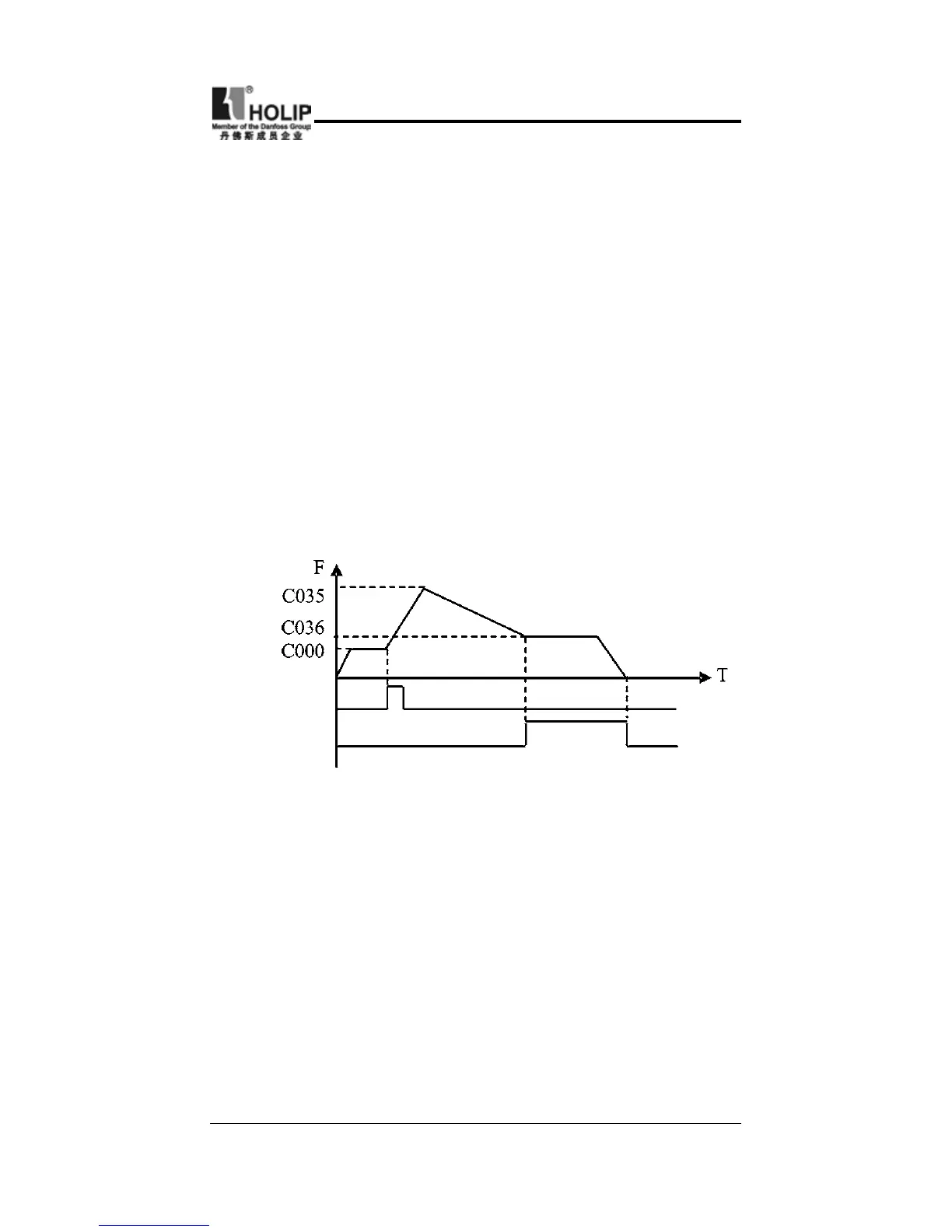

5:Drawing
This is a special parameter for the constant speed of unwinding
and rewinding. By using this function the linare speed constance
within a certain accuracy can be realized.
Mult-input
Multi-output
Note:
(1) Through the trigger of the external multi-function terminal
the drawing action beging to be implemented.
(2) In implementation of drawing the actual running time is
T=C042×10;
(3) when the drawing is finished the inverter will have output
of C036 at the constant seed and the corresponding multi-ouput
contact will act. Until receiving the Stop command the inverter
will stop running and the multi-ouput contact will reset.
(4) In case of C133=1, it has the memory function of power
off. When it restarts after the power off the prior status will be
memorized.
(5) The output frequency for drawing can be either up or down.
