- 93 -
HLP-C
+
Inverters
3. Parameter setting for the application of fast stopping
When using it in the application of loom demanding on fast
stopping the parameter setting is recommended as follows:
①
Decel Time is set to 0.1S.
②
Give a certain DC braking quantity at stopping (if necessary
install additional braking resistor.
③
Voltage stall prevention is set to invalid.
④
In need of positioning, 2 ~3-speed steps can be used for
adjustment.

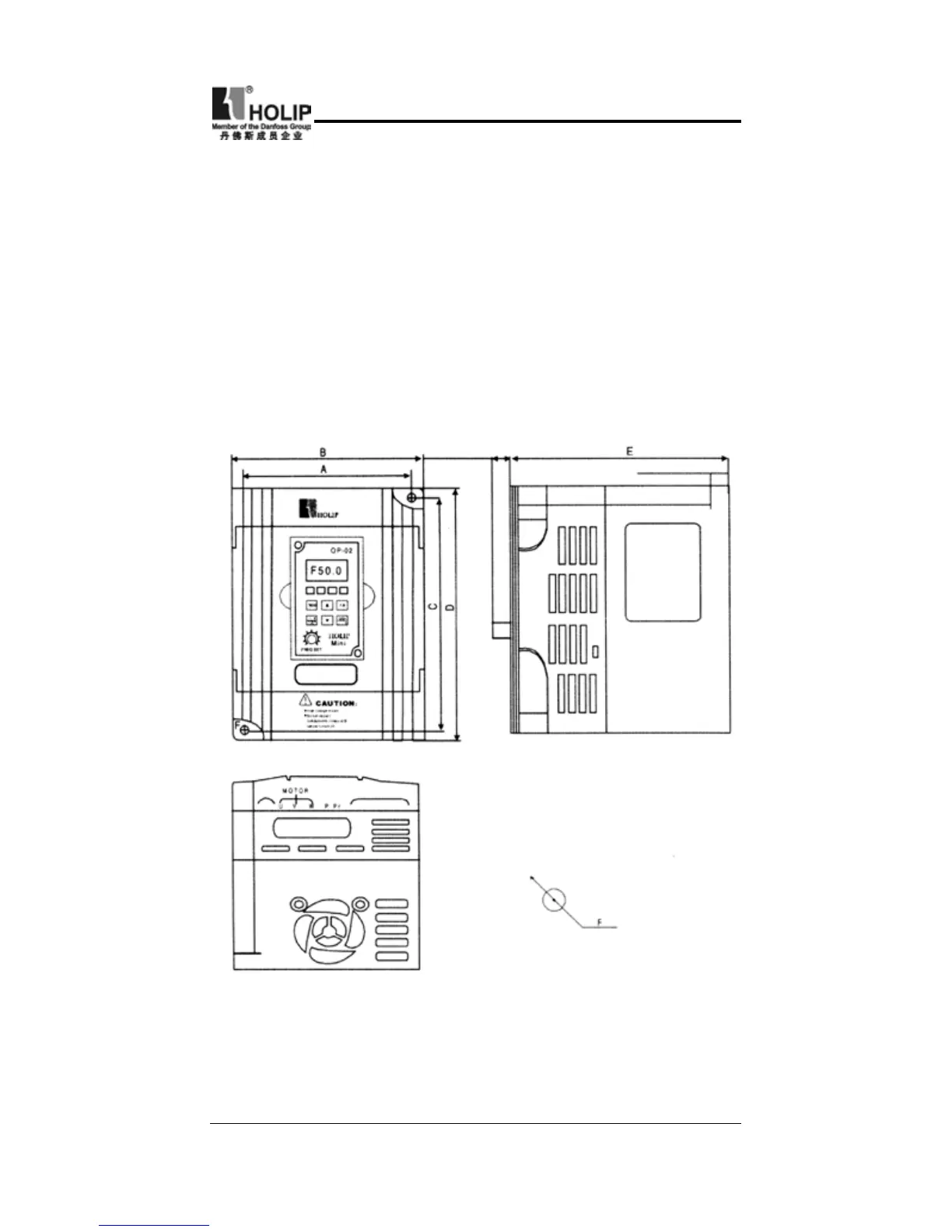

Appendix 2: External Appearance and Installation Dimensions
