Holip hlp-c+ - C077 Negative Bias Reverse of Analog Quantity

- 59 -
HLP-C
+
Inverters

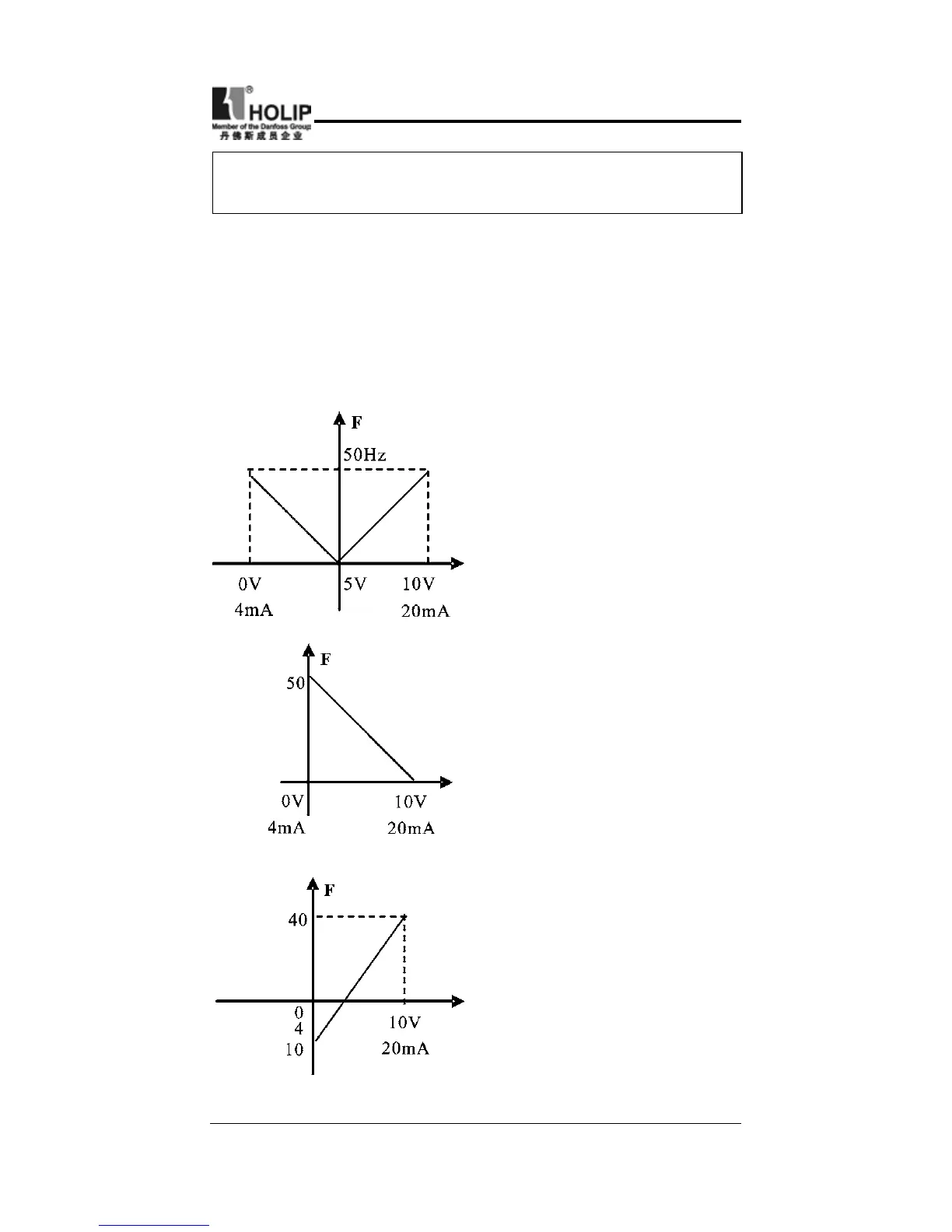

Setting：C073=50
C074=1
C075=50
C076=0
C077=1N
Note: 5~10V corresp. to
0~50Hz
C073=50
C074=0
C075=0
C076=0
Note:0~10Vcorresp.50~0H
C073=10
C074=1
C075=40
C076=0
C077=1
Note:0~10V corresp.10~40Hz，
-10Hz means Rev 10Hz
C077 Negative bias Reverse of Analog Quantity
Set Range
：
0~1 Factory Setting
：
0
0
：
Negative bias Rev is not allowable.
1
：
Negative bias Rev is allowable.
The parameter group is set for the measuring range and zero
point of the external analog terminals and can be combined for
any kind of curve to control the operation of the motor.
Example
：
Rev. Area For. Area
