B. Use RUN, DCM, F/R to combine for Starting, Stopping and
For/Rev
：
①

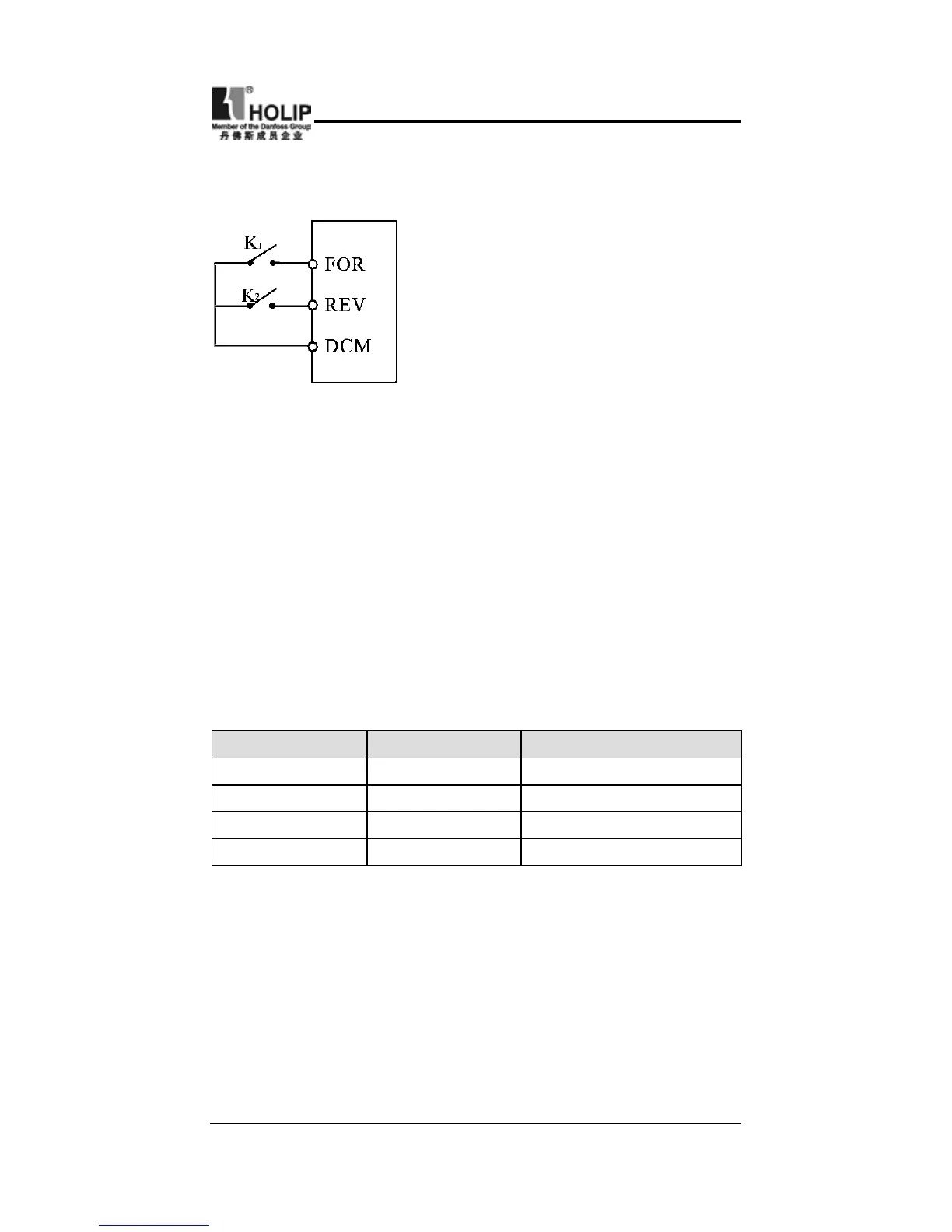

Select the terminals of FOR and
REV
②
Parameter setting: C012=1 to set the
exterminal control.
C050=01 to set RUN
C051=05 to set F/R
When K2 is open it rotates forward, while K2 is closed it rotates
reversely.
C. Description of Accel/Decel Time 1 and 2 Select
⑴
It is only valid when C024 is set to 0, 1, 2. Under the
disturbance and internal control of nulti-step it is invalid.
⑵
Any two multi-function input terminals can be combined to 4
kinds of Accel/Decel for selection.
⑶
The related multi-function input terminals are set to Accel/
Decel Select 1,2.Take the terminals of SPH and SPM as example,
when the terminals of SPH C053 is set to 23 and the terminals of
SPM to 24, then the terminals of SPH and SPM should be Accel/
Decel Time 1, 2 Select.
SPH Terminal SPM Terminal Result
OFF OFF Accel/Decel Time 1
ON OFF Accel/Decel Time 2
OFF ON Accel/Decel Time 3
ON ON Accel/Decel Time 4
