- 50 -
HLP-C
+
Inverters

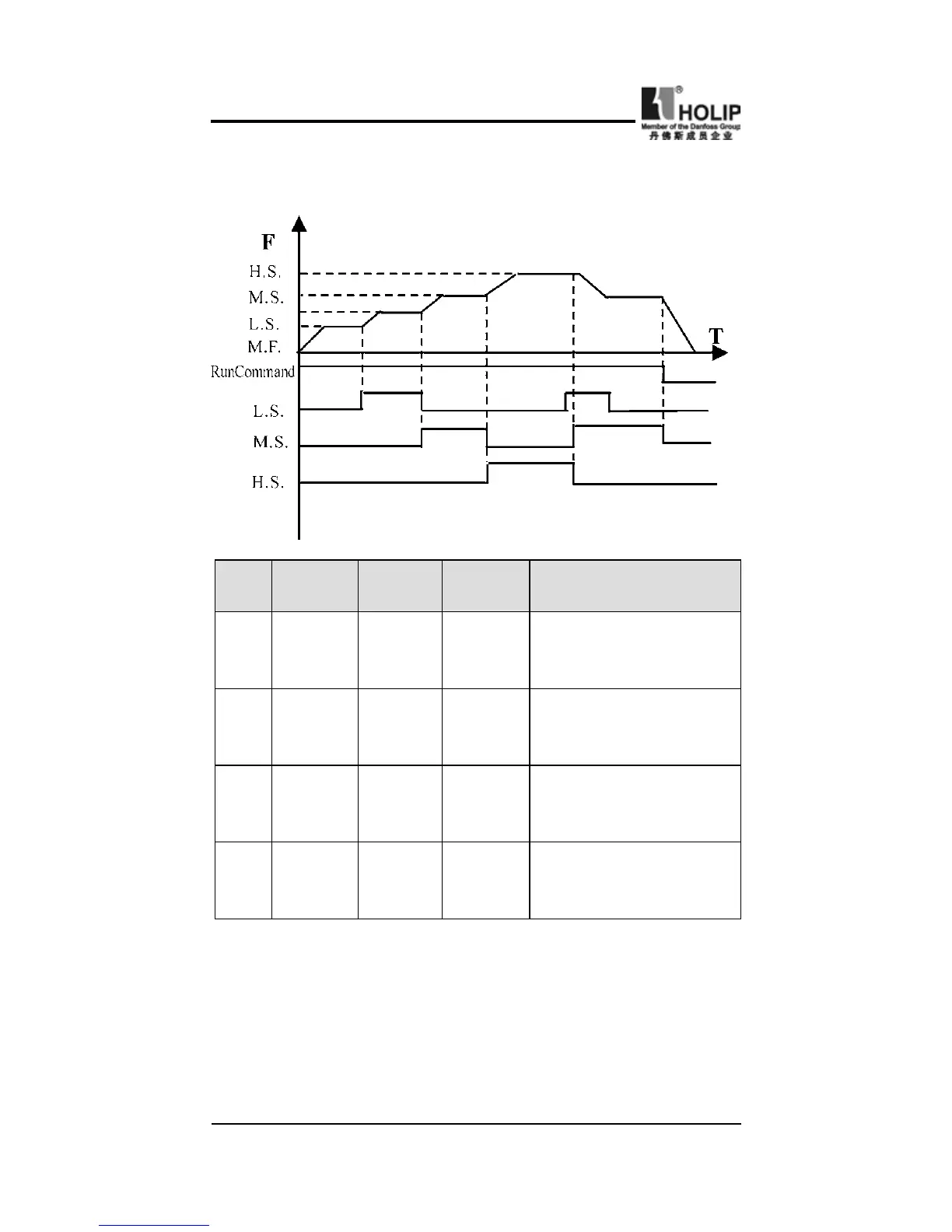

D. Function description of High, i nter mediate a nd low
terminals
：
RUN
SPL
Terminal
SPM
Terminal
SPH
Terminal
Result
ON OFF OFF OFF
M ai n f r e que n cy a n d
frequency run with the
set value of C000.
ON ON OFF OFF
Low speed and
frequency run with the
set value of C035.
ON ON/OFF ON OFF
Intermediate speed and
frequency run with the
set value of C036.
ON ON/OFF ON/OFF ON
High speed and
frequency run with the
set value of C037.
Note:
⑴
This function is only valid when C024 is set to 1, i.e.externally
controlled 4-steps.
⑵
Low, intermediate and high speed frequency are determined
by Frequency2,3, 4.
⑶
Accel/Decel time is determined by Accel/Decel select
terminals.
