Action Description:
①
XII. Appendices
Appendix 1: Simple Application Example

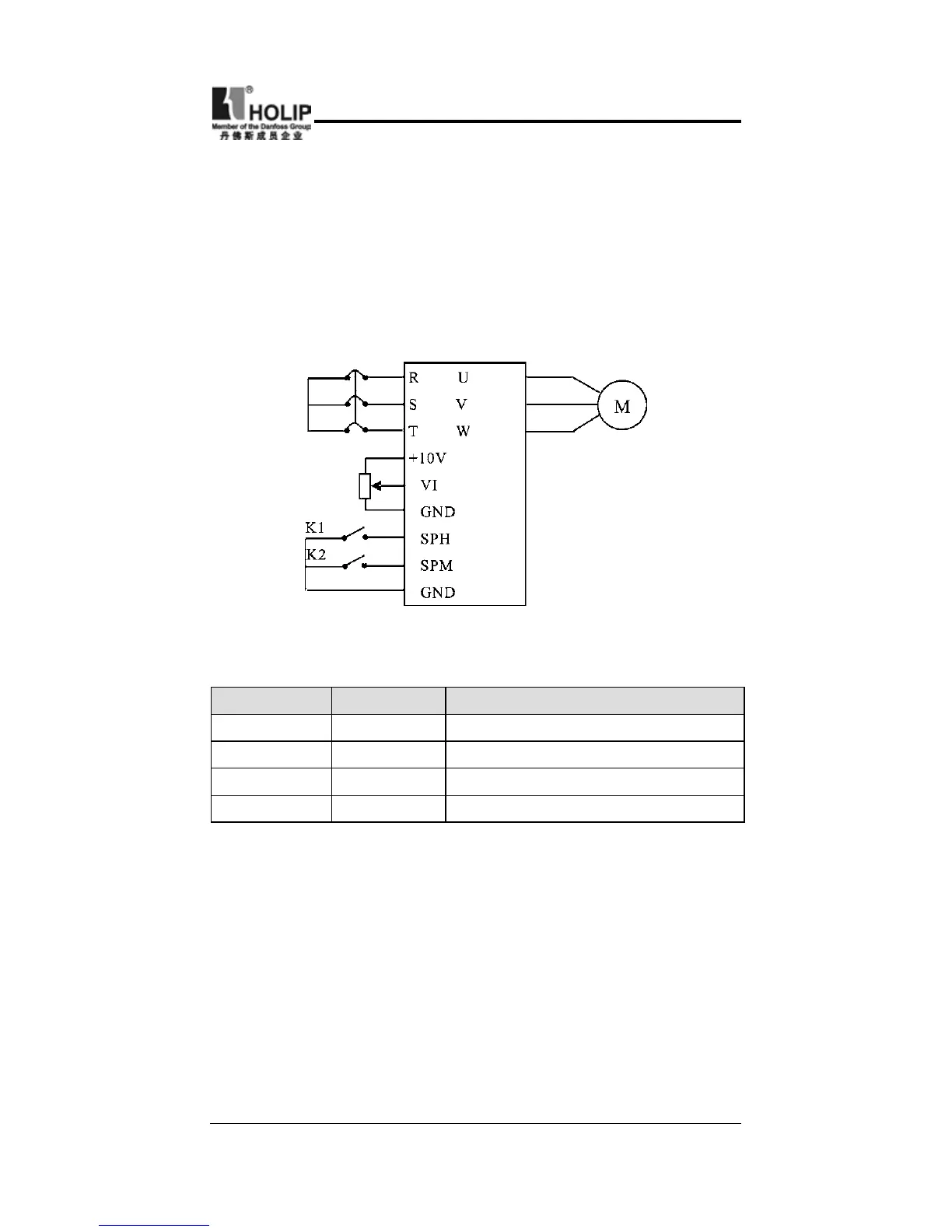

1. Common application example of analog and multi-speed steps
Requirement: The frequency for the rst step is given by analog
quantity. Afterswitching with a swith turn to the operation of
external multi-speed.
K1State K2 State Running Frequency
OFF OFF Given by the potentiometer
ON OFF Speed Step 2 (15Hz)
OFF ON Speed Step 3 (30Hz)
ON ON Speed Step 4 (25Hz)
②
For/Rev switching can be carried out by switching of multi-
function terminals or switching of For/Rev on the panel ( The
switching of For/Rev on the panel is adopted in this example.)
