increment upward or decrement downward. The up or
down speed is determined by the present accel/decel time.
The function of power-off memory can be set through
C060.
26
：
DOWN function
27
：
Counter pulse: When the terminal is set for the counter
it can receive the pulse signal of ≤250HZ and count the
time.
28
：
Counter reset: the action of this contact can clear the
present counting values and restore C00 to restar t
counting.
29
：
Drawi ng start: When the contact is t riggered the
actionofdrawing will start.
31
：
Auto PLC reset suspend: This contact can be used to
realize the function of suspending clear-up of Auto PLC.

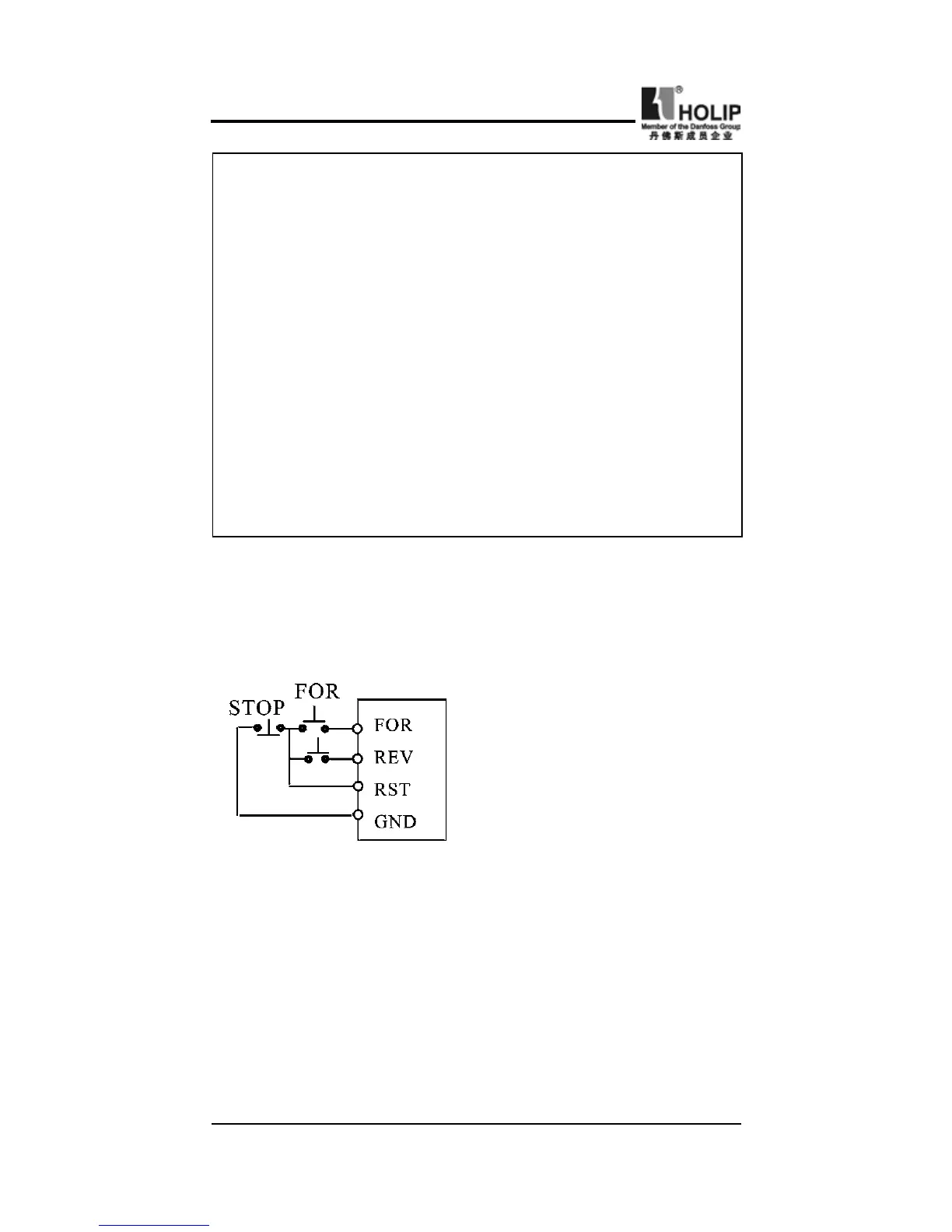

A. Using the three multi-function terminals to for m the
connection method of three-wire system for the realization of
switching FOR/REV, which is extentively applied in the case of
switching For/Rev of photoelectric switches.
This function is only valid when
C012 is set to 1.
Setting
：
C050=02 C051=03
C052=04 C012=1
Action Description:
When triggering FOR, the inverter will rotate forward (starting);
Whentriggering REV, the inverter will rotate reversely;
When pressing STOP, the inverter will stop.
